Grundig Satellit 700

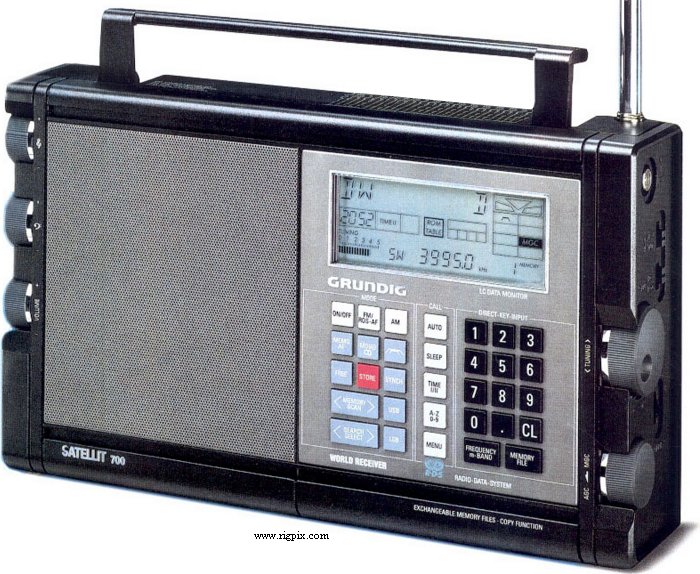

A picture of Grundig Satellit 700

SPECIFICATIONS

GENERAL
Type:HF/VHF receiver
Frequency range: 0.14-30 / 88-108 MHz
Tuning steps:AM/SSB: 0.1 / 1 / 5 / 9 / 10 KHz + fine tuning
WFM: 25 KHz
Frequency stability:? ppm
Mode:AM / AM Narrow / AM-sync / SSB / WFM Stereo
Channels / memory management: 512 regular with alpha tags
Power supply:6 VDC (Four LR20 / D batteries)
12 VDC external
or mains
Current drain / power consumption:? mA @ 6 VDC
Antenna impedance / connector:50-75 ohm / ?
- / Built-in telescopic whip
Dimensions (W*H*D):305*175*65 mm (12.25*7.25*3")
Weight:1.8 Kg (4 lb)
Other features:RDS. Dual clocks. Dual timers.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (AM/WFM)
IF: 450 KHz (AM), 10.7 MHz (WFM)
Double conversion superheterodyne (SSB)
1st IF: 54.5 MHz
2nd IF: 450 KHz
Sensitivity: AM: 6.8 KHz (-6 dB)
AM Narrow/SSB: 3.8 KHz (-6 dB)
WFM: 230 KHz (-6 dB)
Selectivity:
Image rejection:
AF output power / speaker:2*1.5 W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Portugal, 1991-1996 (Discontinued)
Additional info: Around 50.000 units were made
New price 1996 in Germany: DM 780,-
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
