| GENERAL |
| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 76-108 / 400-480 MHz
|
| Tuning steps: | TX: Channelized
RX: 2.5 / 5 / 6.25 / 8.33 / 10 / 12.5 / 25 / 50 / 100 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +50°C (-4 to +122°F) |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: |
22 GMRS simplex
8 GMRS repeater
400 user programmable
Alpha tags
Non-volatile EEPROM storage
Scanning
Priority function
|
| Repeater capable: | Yes |

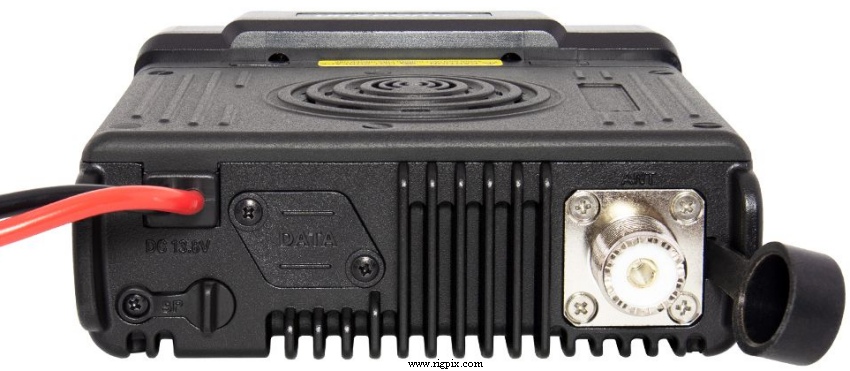

| Power supply: | 13.8 VDC ±15% ("T" connector on pigtail) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? mA |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 120*55*120 mm (4.72*2.16*4.72") |
| Weight: | 635 g (1.4 lb), including microphone |
| Other features: |
CTCSS/PL and DCS with split tone and tone scanning. Seven
selectable backlite colors. Bluetooth. Backlit DTMF speaker-mike.
Programmable function keys. Over-the-air frequency counter.
Noise reduction. Descrambler. Stopwatch/timer. Voice guide.
VOX. Roger beep. PC programmable.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: |
FM: 70 dB (Adjacent channel)
NFM: 60 dB (Adjacent channel)
|
| Image rejection: | |
| AF output power / speaker: | 3 W at 5% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2026-202x |
| Additional info: |
FCC ID: 2GBESWX005
New price, july 2026 in the US: $119.99
|
| Related documents: |
User manual (2.6 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
PCO-003
|
USB programming cable
|
|
