Commander 328

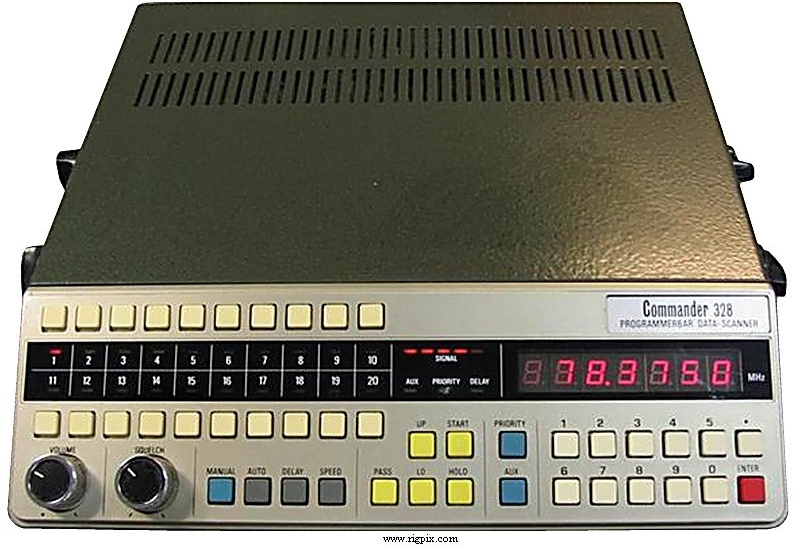

A picture of Commander 328

SPECIFICATIONS

GENERAL
Type:VHF/UHF receiver/scanner
Frequency range:58-88 / 144-174 / 400-470 MHz
Tuning steps:12.5 KHz
Frequency stability:? ppm
Mode:FM
Channels/memory management:20 channels @ 5 or 10 ch/s
Power supply:Mains: 220 VAC
or 13.8 VDC
Current drain/power consumption:? mA @ 13.8 VDC
Antenna impedance/connector:50-75 ohms / 2*DIN41585 (Motorola)
Dimensions (W*H*D):265*70*265 mm (10.43*2.76*10.43")
Weight:3.3 Kg (7.27 lbs)
Other features:Tape out




RECEIVER SECTION
Receiver system:? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:VHF: 0.5 uV (no reference)
UHF: 0.4 uV (no reference)
Selectivity:
Image rejection:
AF output power/speaker:? W at ?% distortion / ? ohm
External speaker connector:3.5 mm




MISCELLANEOUS
Manufactured:Japan, 1981-198x (Discontinued)
Additional info: Also sold as Scooper Skysearch 520.

New price 1981 in Sweden: SEK 1680:-
New price 1983 in Sweden: SEK 2350:-
Related documents:
Modifications:
Reviews:
Options/Accessories:
- -

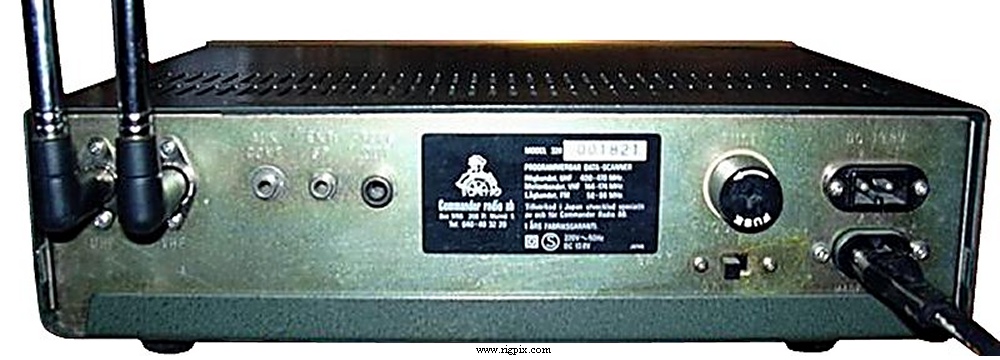

A rear picture of Commander 328
