Clegg FM-21

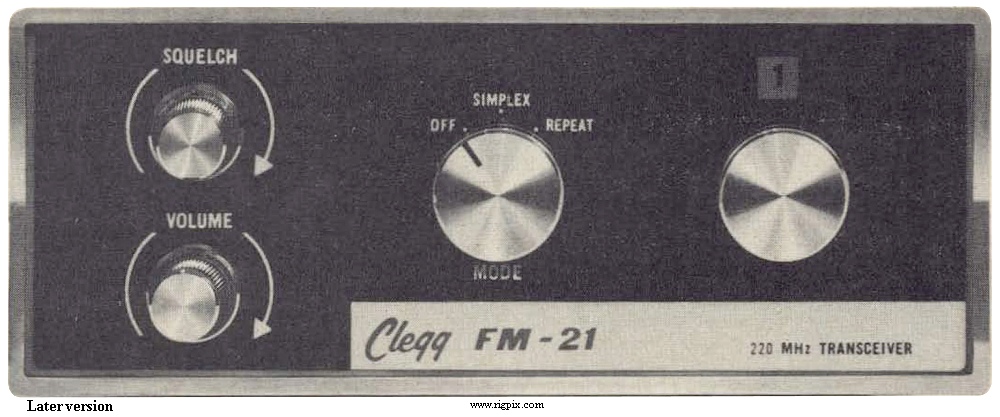

A picture of Clegg FM-21, later version

SPECIFICATIONS

GENERAL
Type:Amateur VHF transceiver
Frequency range: 1.25 m: 220-225 MHz
Tuning steps:Channelized
Frequency stability:±? ppm
Mode:FM
Channels / memory management: ? regular (XTAL controlled)
Repeater shift / offset:±1.6 MHz
Power supply:12-14 VDC
Current drain / power consumption:RX: 120-450 mA
TX: Max 1.5 A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):178*70*229 mm (7*2.75*9")
Weight:? Kg (? lb)
Other features:




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:0.25 uV (12 dB SINAD)
Selectivity:
Image rejection:
AF output power / speaker:1.5 W at 10% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:

High
1.25 m:10 W
Modulation system:
Max FM deviation (Factory set):±5 KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:USA, 1972-197x (Discontinued)
Additional info: New price, august 1972 in the US: $299.95
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
A picture of Clegg FM-21, early version
