| GENERAL |

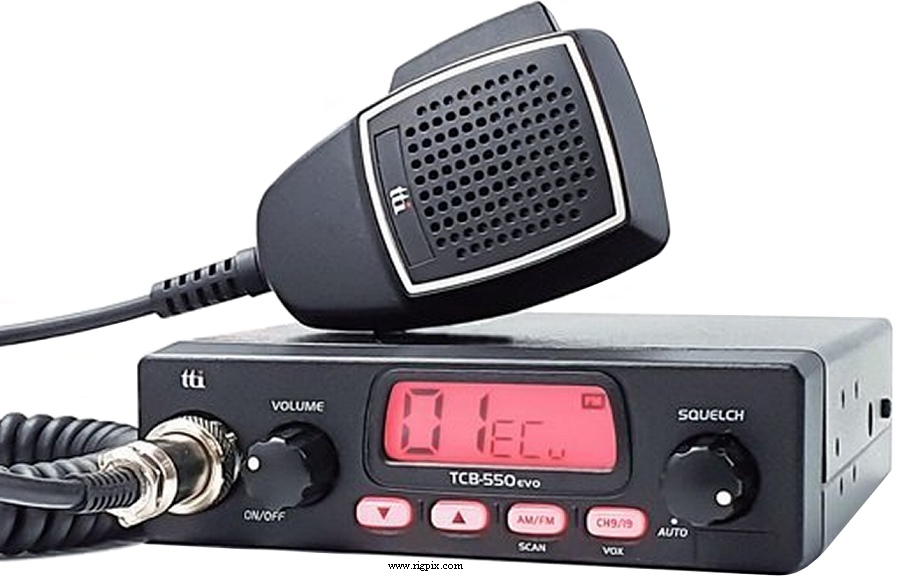

| Type: | Citizen band transceiver, multinorm |
Frequency range
depending on setting: |
EC: 26.965-27.405 MHz
EU: 26.965-27.405 MHz
E: 26.965-27.405 MHz
F: 26.965-27.405 MHz
I: 26.965-27.405 MHz
I2: 26.875-27.265 MHz
D: 26.565-27.405 MHz
D2: 26.965-27.405 MHz
UK: 26.965-27.405 and 27.60125-27.99125 MHz
PL: 26.960-27.400 MHz
RU: 25.615-30.105 MHz (After modification)
PX: 26.610-30.100 MHz (After modification)
|
| Channels / tuning steps: | 12, 34, 40 or 80 (Depending on setting)
445 after modification (With alpha channels) |
| Mode: | AM / FM |
| Frequency control: | PLL |
| Frequency stability: | 0.002% @ -10 to +55°C (14 to 131°F) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.2 and 24 VDC ±15% (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: Max 1.6 A |

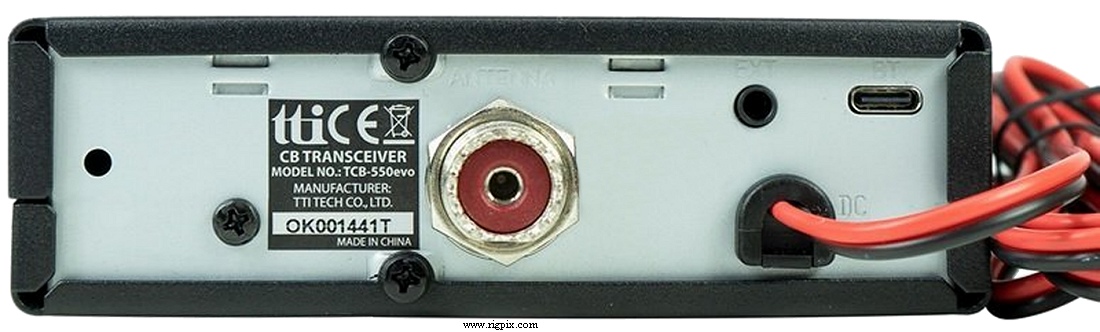

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 124*37*135 mm (4.88*1.46*5.32") |
| Weight: | 590 g (1.3 lb) |
| Other features: |
Channel 9/19 button. VOX. Dimmer. Tri-color backlight (Selectable).
Scanning.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 0.7 uV (10 dB(S+N)/N)
FM: 0.7 uV (20 dB SINAD)
|
| Squelch sensitivity: | Less than 1 uV (Threshold)
Less than 2 uV (DSS) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 2 W at 8% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
1 or 4 W (Depending on setting)
10% duty cycle @ 4 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±1.8 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2022-202x |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: | User manual (868 KB) |
| Market(s) / Approval(s): |
Europe
EN 62311:2008
EN 50665:2017
EN 62368-1:2014+A11:2017
EN 301 489-1 V2.2.3:2019-11
EN 301 489-13 V1.2.1:2002-08
EN 300 433 V2.1.1 (2016-05)
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
