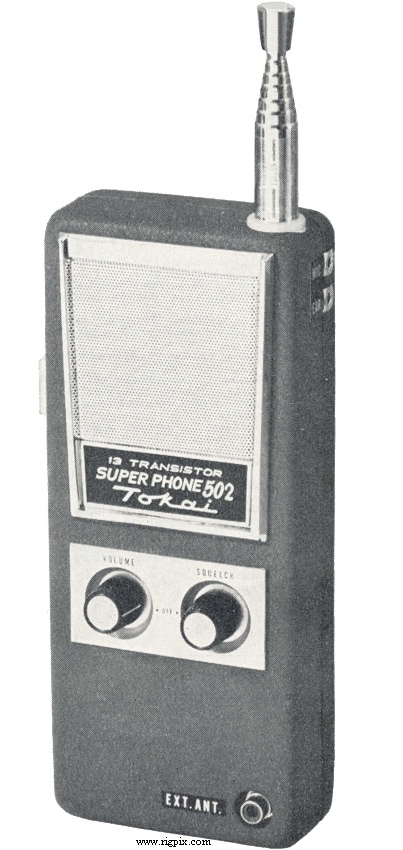

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26-30 MHz |
| Channels / tuning steps: | 2 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |
| Power supply: | 12 VDC (Eight LR6 / AA alkaline batteries or NiCd pack)
or 12 VDC external |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: | Built-in telescopic whip
or 50 ohm / Phono (RCA) |
| Dimensions (W*H*D): | 60*210*40 mm (2.36*8.27*1.58") |
| Weight: | 1.1 Kg (2.42 oz), with batteries |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 1 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power/speaker: | 300 mW at 10% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~600 mW (1 W input) |
| Modulation system: | |
| Max AM modulation (Factory set): | ? % |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin (3.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 196x-196x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price, june 1967 in Sweden: SEK 595:- plus VAT
|
| Related documents: |
User manual (2.8 MB, In swedish)
Service manual (3.2 MB, In swedish)
|
| Known markets and approvals: |
Sweden
Kungliga Telestyrelsen
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BE-0.2A
BE-1A
BL
DC-1
FA-27
FA-29
KVA-27
KVA-29
M
MH-1
MH-2
SA-1
|
AC power supply. 220 VAC
AC power supply and charger. 220 VAC
AC charger. 220 VAC
DC/DC-converter. 6 to 12 V
Stick-on antenna. 27 MHz
Stick-on antenna. 29 MHz
Extra short antenna. 27 MHz
Extra short antenna. 29 MHz
Hand microphone
Earpiece-microphone
Headset and microphone
DC stabilizer for 12 V car battery
|
|
