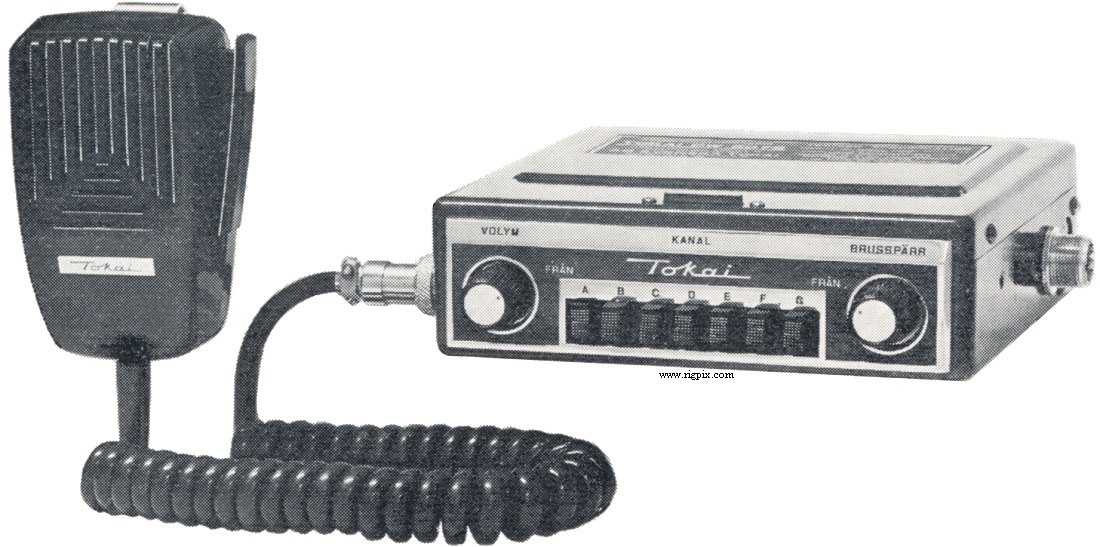

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26-31 MHz |
| Channels / tuning steps: | 7 |
| Mode: | AM |
| Frequency control: | Two XTAL's per channel |
| Frequency stability: | 0.001% @ -20 to +50°C (-4 to +122°F) |
| Clarifier or Delta tune: | No |
| Power supply: | 12 VDC |
| Current drain / power consumption: | RX: 38 mA
TX: Max 900 mA |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 150*45*150 mm (5.9*1.77*5.9") |
| Weight: | 1.2 Kg (2.64 lb) |
| Other features: | External selcall option. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 6 KHz (-6 dB)
20 KHz (-41 dB) |
| Image rejection: | |
| AF output power / speaker: | 2.5 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3 W (5 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 196x-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price, february 1969 in Sweden: SEK 695:- + VAT
|
| Related documents: |
User manual (4.6 MB)
|
| Known markets and approvals: |
Sweden
Kungliga Telestyrelsen
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BE-1A
BK
BL-0.1A
DC-2
MH-1
MH-2
SA_1
SA-2
SG
Voicon
|
AC power supply. 12.6 VDC, 1 A. For 220 VAC
Battery case and antenna support for portable use
Battery charger for the BK unit
DC/DC-converter. 6 V input, 12 V, 1 A output
Headset. Requires the Voicon
Headset
Voltage stabilizer. 12 VDC input, 12 VDC, 1.5 A output
Voltage stabilizer with speaker. 12 VDC input, 12 VDC, 1.5 A output
External selcall unit. Dual tone type
External VOX unit
|
|
