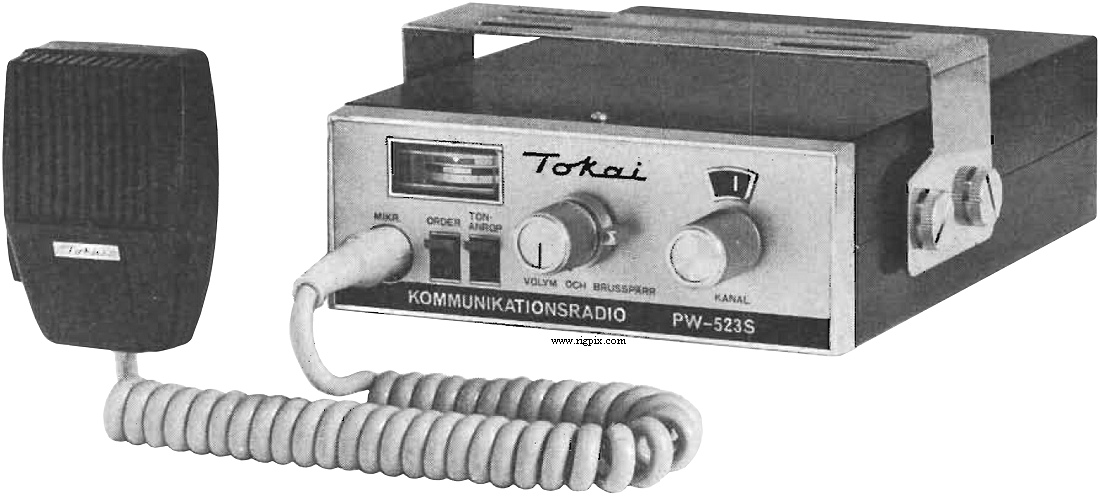

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.225 MHz |
| Channels / tuning steps: | 23 (1-22 + 11A) |
| Mode: | AM |
| Frequency control: | XTAL matrix (15 XTALs) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 12-14 VDC |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 160*60*220 mm (6.3*2.36*8.66") |
| Weight: | 2.5 Kg (5.51 lb) |
| Other features: |
PA. Dual tone selcall transmit. External selcall jack.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.595-10.635 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.4 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 5-pin DIN (180°) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan (Designed in Sweden), 1969-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price 1969 in Sweden: SEK 1180:- + VAT
|
| Related documents: | |
| Known markets and approvals: |
Sweden
Kungliga Telestyrelsen
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
