| GENERAL |

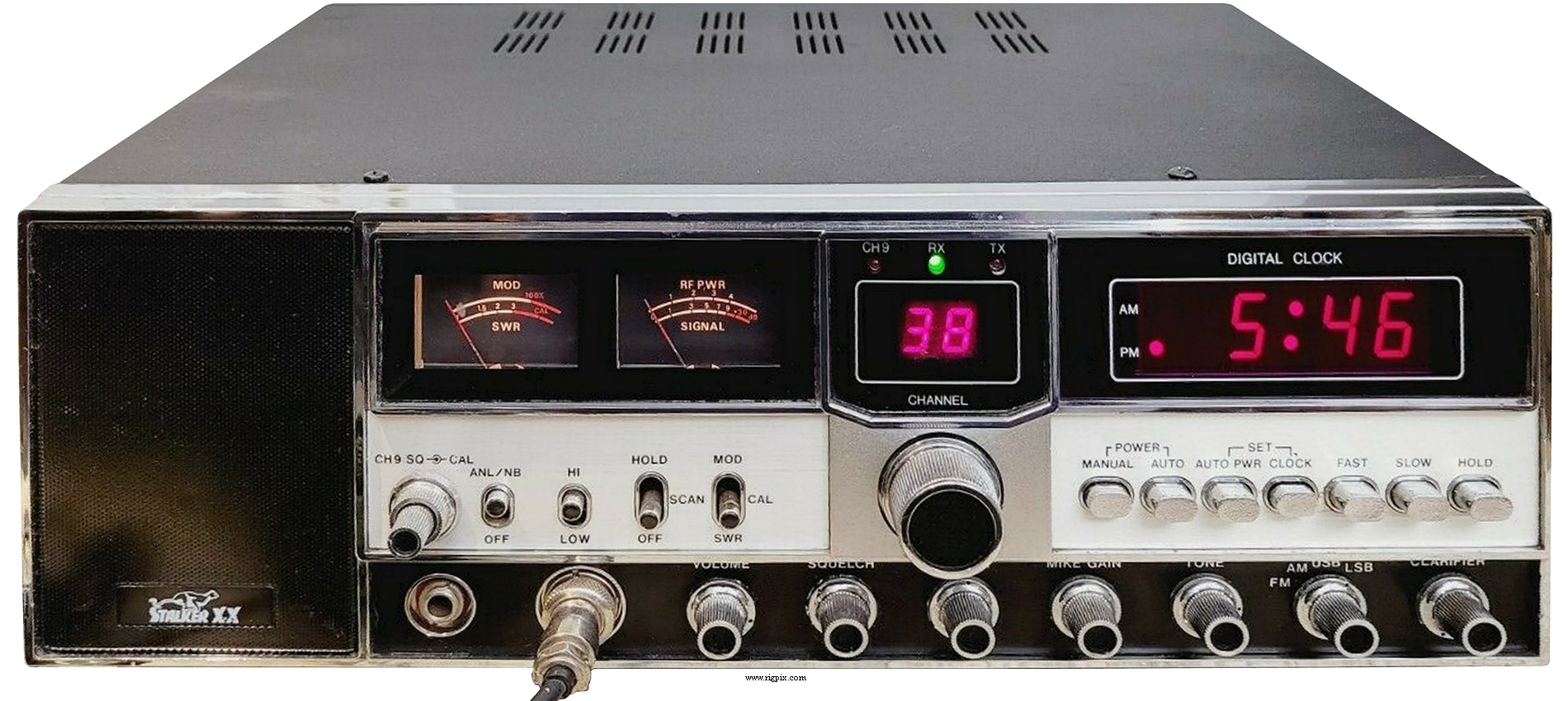

| Type: | Citizen band transceiver |
| Frequency range: |
26.965-27.855 MHz in two bands
Lo: 26.965-27.405 MHz
Hi: 27.415.27.855 MHz
|
| Channels / tuning steps: | 80 (2*40) |
| Mode: | AM / FM / SSB |
| Frequency control: | PLL (MB8719) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | ±1.25 KHz |
| Power supply: | Mains: 220 VAC (Fixed power cord)
or 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: ? A @ 13.8 VDC
TX: ? A @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 381*140*305 mm (15*5.5*12") |
| Weight: | 5.44 Kg (12 lb) |
| Other features: | ANL/NB. Clock. SWR-meter. Channel 9 scanner. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: ? MHz
|
| Sensitivity: |
AM: 0.5 uV (10 dB S/N)
SSB: 0.25 uV (10 dB S/N)
|
| Squelch sensitivity: | |
| Selectivity: | 6 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | 3 W at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 5 W
FM: 5 W
SSB: 12 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 5-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 197x-198x (Discontinued) |
| PCB: | PC-411AD by Uniden |
| Sub PCBs: |
PC-??? - Power supply board
PC-??? - LED channel display board
PC-743AA - FM board
PC-??? - Two XTAL board
PC-??? - Channel selector board
PC-??? - Digital clock board
and others...
|
| Additional info: | |
| Related documents: | MB8719 |
| Market(s) / Approval(s): |
Export
No known approvals
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
