| GENERAL |

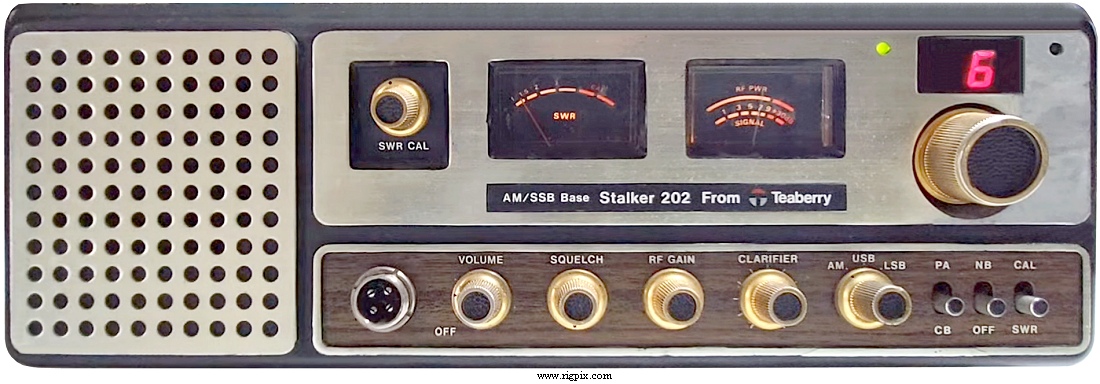

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM / SSB |
| Frequency control: | PLL (uPD858C) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | ±? Hz |
| Power supply: | Mains: 117 VAC (Male 2-pin jack)
or 13.8 VDC (3-pin male jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | PA. ANL. SWR meter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 7.8 MHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
SSB: 12 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 1978-1979 (Discontinued) |
| Main PCB: | PC-176BD by Uniden |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
RF driver: 2SC1306
RF final: 2SC1307
|
| Market(s) / Approval(s): |
USA
FCC Data: 4018
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
