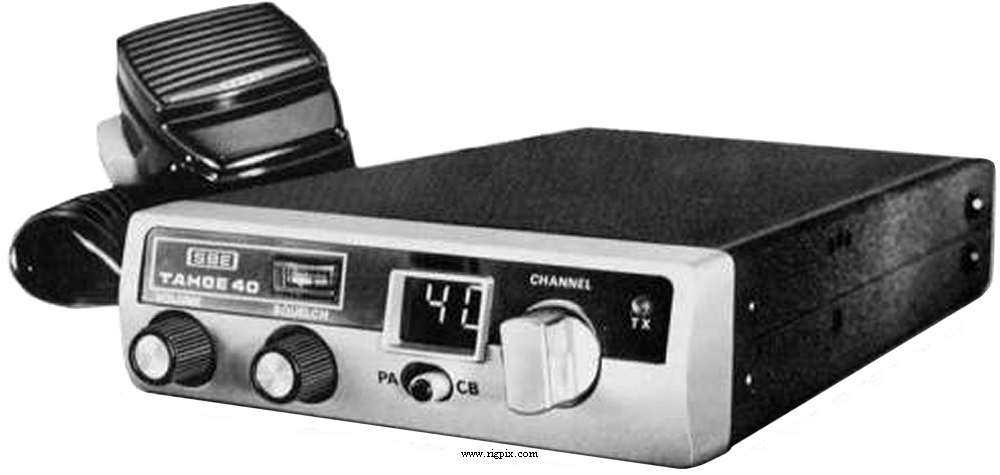

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (uPD861C) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 114*36*197 mm (4.49*1.42*7.76") |
| Weight: | 1.05 Kg (2.32 lb), without mobile bracket |
| Other features: | PA |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 6.485-6.925 MHz
2nd IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 600 ohm / 5-pin DIN (180°) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 197x-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
PLL: uPD861C
RF driver: 2SC2086
RF final: 2SC2166
|
| Market(s) / Approval(s): |
USA
FCC Data: SBE-49CB
|
| Sams Photofact #: | CB-173 (March 1978) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
SBE-1AC
SBE-1SP
SBE-1SP/AMP
|
Base station PSU
External speaker
External speaker with amplifier
|
|
