Scancom CB-60

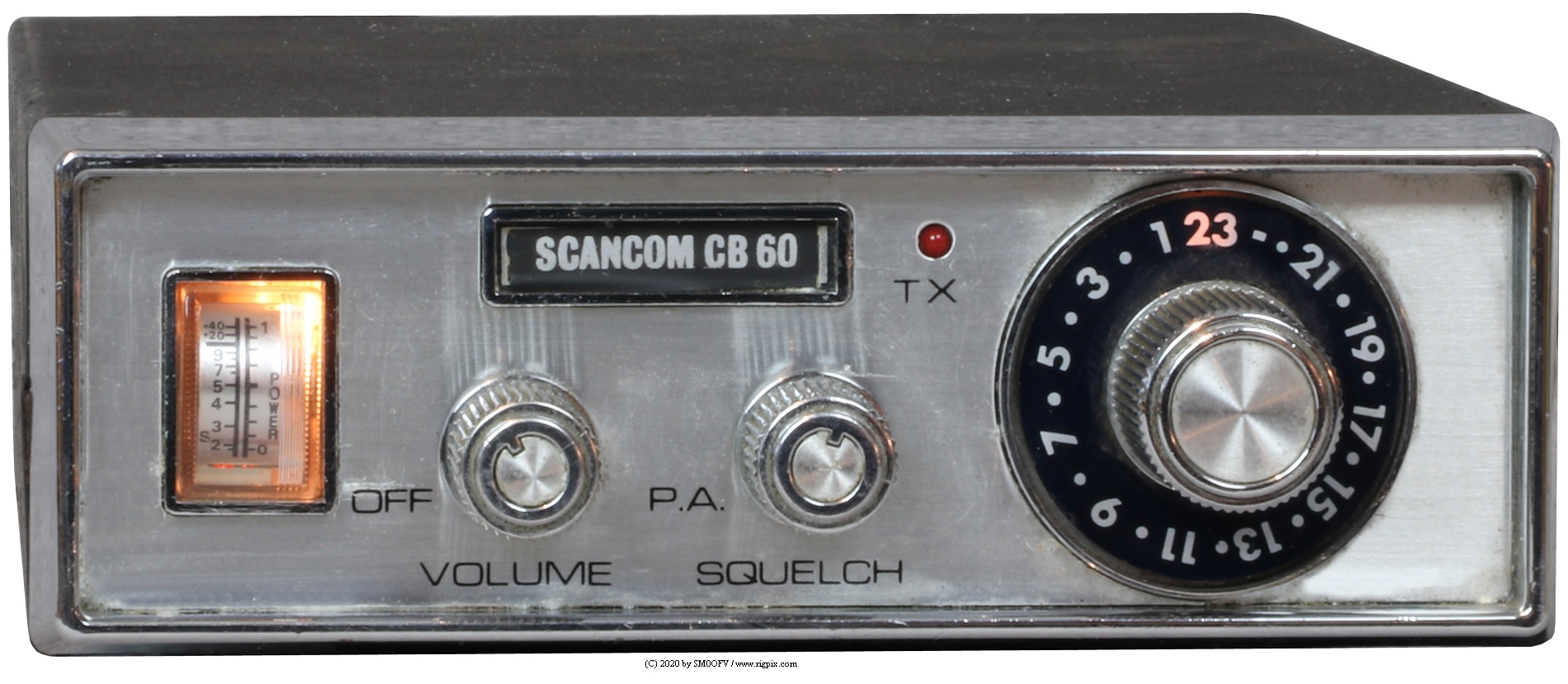

A picture of Scancom CB-60

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.255 MHz
Channels / tuning steps:23
Mode:AM
Frequency control:XTAL matrix (14 XTALs)
Frequency stability:?%
Clarifier or Delta tune:No
Power supply:13.8 VDC
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):126*45*185 mm (4.96*1.77*7.28")
Weight:1.07 Kg (2.36 lb), without mounting bracket
Other features:PA




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz - Ceramic filter: CFU455H
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / 8 ohm
External speaker connector:3.5 mm, 8 ohm




TRANSMITTER SECTION
RF output power:~3.5 W (5 W input)
Modulation system:
FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 6-pin DIN
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 197x-197x (Discontinued)
Main PCB:Single sided
Sub PCBs:
Additional info:
Related documents:
Sams Photofact #:None
Modifications and fixes:
Reviews:
Options / Accessories:
- -

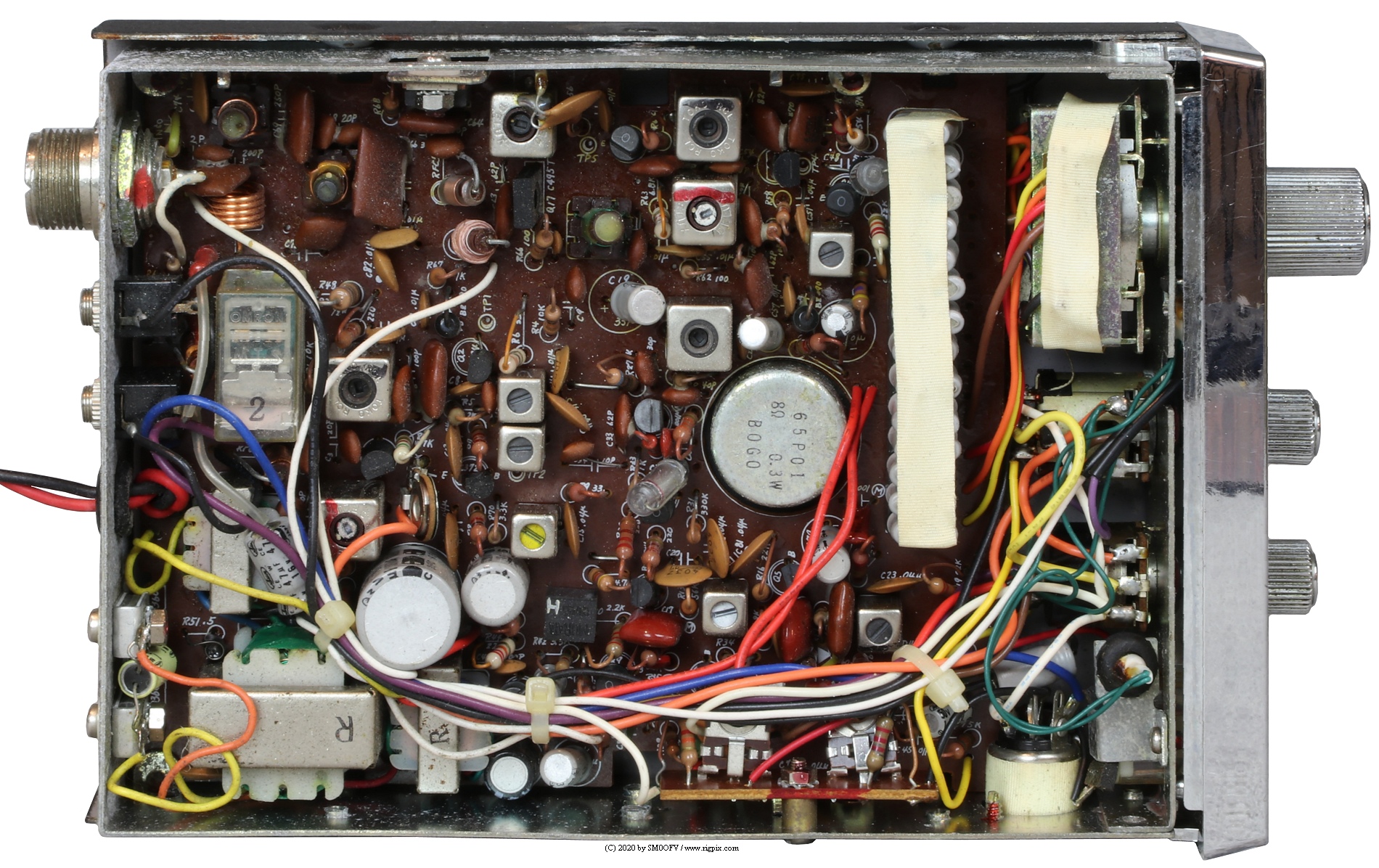

An inside picture of Scancom CB-60

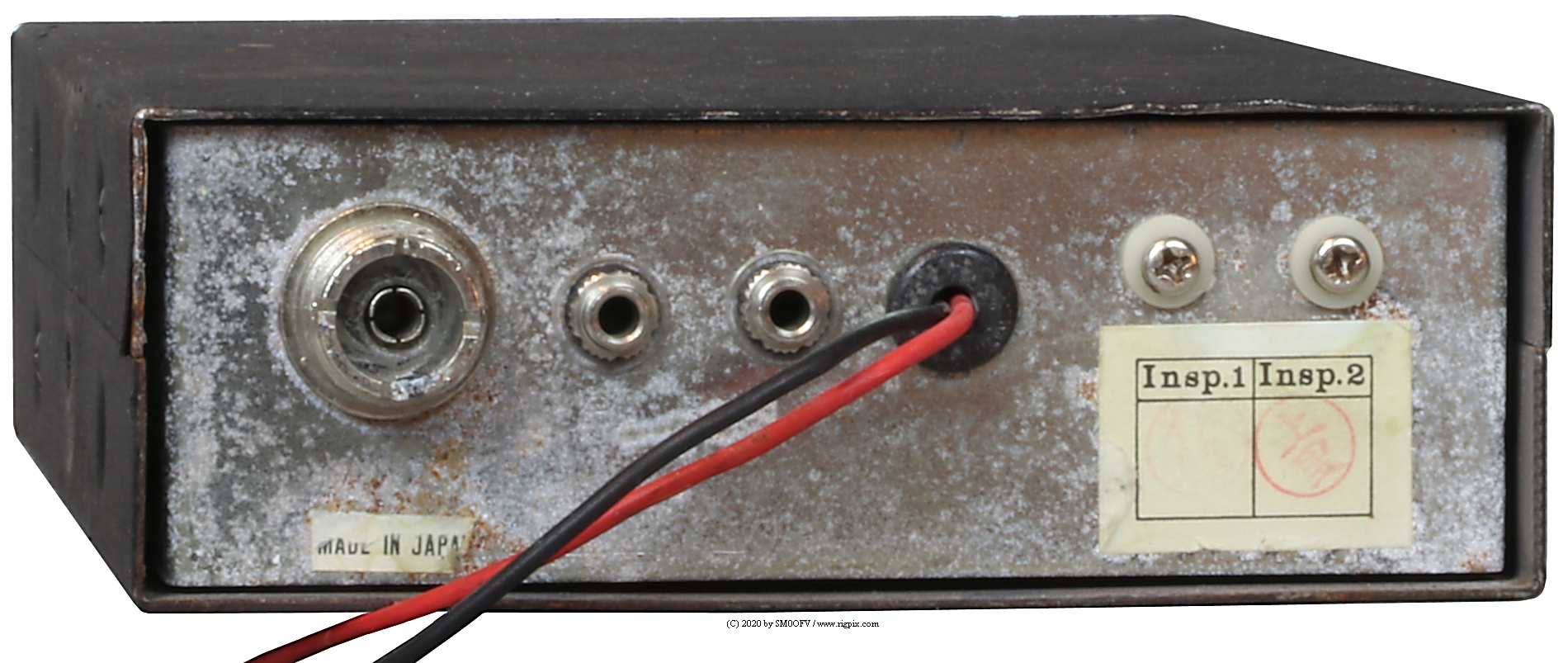

A rear picture of Scancom CB-60
