| GENERAL |

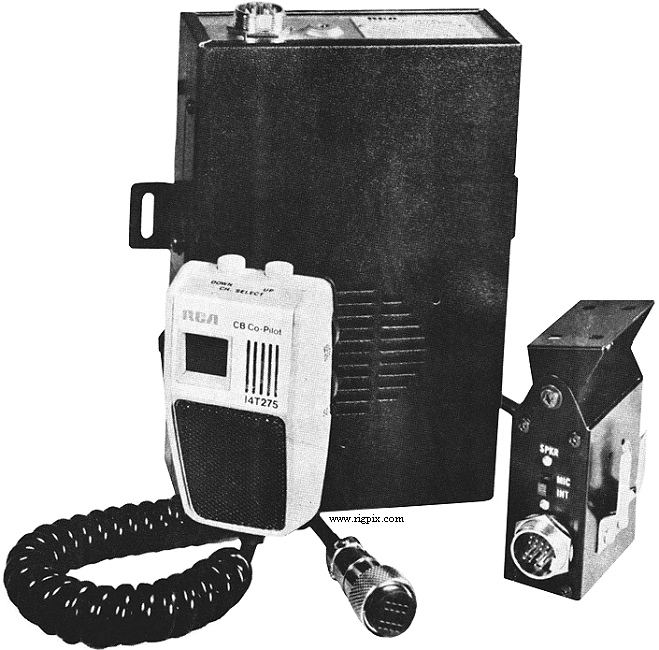

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | |
| Clarifier or Delta tune: | No |
| Power supply: | 10-15 VDC (Male 2-pin jack) |
| Current drain / power consumption: | RX: 700 mA (Average)
TX: Max 1.2 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): |
Radio unit: ? mm (?")
Connection box: ? mm (?")
Control mike: ? mm (?")
|
| Weight: |
Radio unit: ? Kg (? lb)
Connection box: ? g (? oz)
Control mike: ? g (? oz)
|
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S/N) |
| Squelch sensitivity: | 1.5 uV (Threshold)
100 uV (Tight) |
| Selectivity: | 40 dB (Adjacent channel) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 16-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1977-197x (Discontinued) |
| Main PCB: |
PTBM060AOX by Cybernet Electronics Corporation
Single sided with through-hole components
|
| Sub PCBs: |
PTCB04AOX - Connector board
|
| Additional info: | |
| Related documents: |
Service manual (10.1 MB)
PLL: PLL02A
AF amplifier: TA7205P
|
| Known markets and approvals: |
USA
FCC Data: 14T275
|
| Sams Photofact #: | CB-222 (October 1978) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
14T818
|
Extension control cable. 3.9 m (13 ft)
|
|
