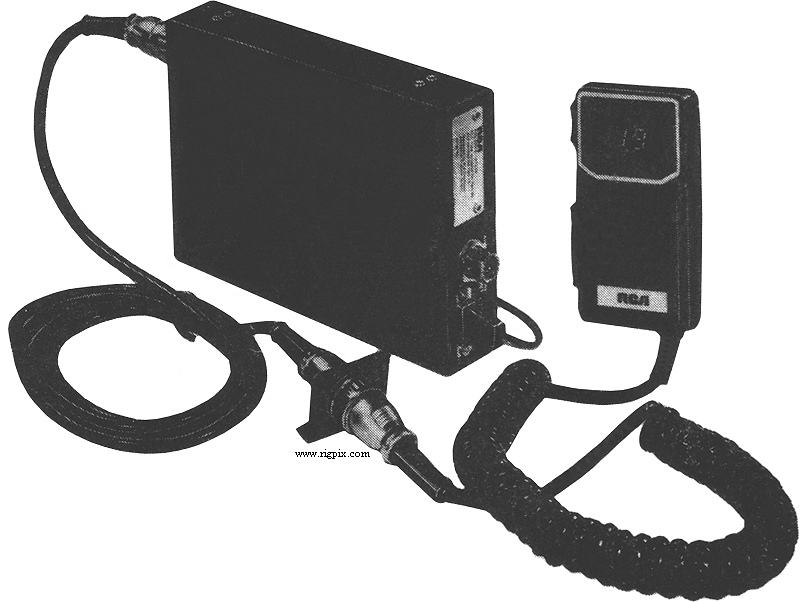

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (uPD2814C) |
| Frequency stability: | ±0.002% (No temperature reference) |
| Clarifier or Delta tune: | No |
| Power supply: | 12-15 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: ? A
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): |
Radio unit: 140*41*198 mm (5.5*1.62*7.81")
Control mike: ? mm (?")
|
| Weight: |
Radio unit: 1.36 Kg (3 lb)
Control mike: ? g (? oz)
|
| Other features: | Channel 9 switch. ANL. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S+N/N) |
| Squelch sensitivity: | 0.5 uV (Threshold)
1000 uV (Tight) |
| Selectivity: | 7 KHz (-6 dB) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 4 W at 10% distortion / 16 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -70 dB |
| Microphone impedance / connector: | ? ohm / 20-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 197x-197x (Discontinued) |
| Main PCB: |
PC-590AA 1/2 by Uniden
|
| Sub PCBs: |
PC-590AA 2/2 - Connector board
|
| Additional info: | |
| Related documents: |
Service manual (13.4 MB)
AF amplifier: MB3712
|
| Known markets and approvals: |
USA
FCC Data: ?
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
