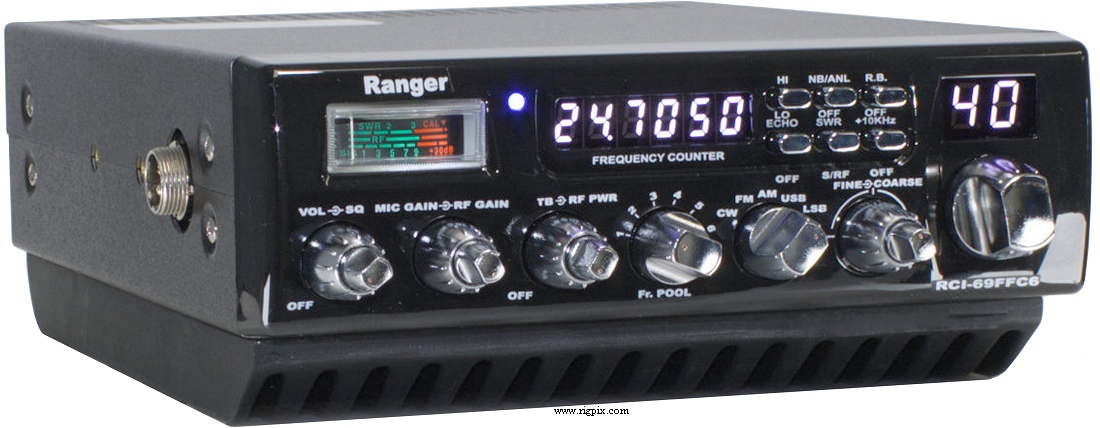

| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
Export mode
24.265-29.655 MHz
10 m mode
28.245-29.655 MHz
|
| Channels / tuning steps: |
Export mode
480 (Hi 6*40 + Lo 6*40)
10 m mode
240 (6*40)
|
| Mode: | AM / FM / SSB / CW |
| Frequency control: | PLL (MC145106) |
| Frequency stability: | 0.001% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | Coarse (RX/TX): ±3.1 KHz
Fine (RX): ±1.1 KHz |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 (On pigtail) |
| Dimensions (W*H*D): | 200*83*282 mm (7.88*3.25*11.12") |
| Weight: | 3.71 Kg (8.19 lb) |
| Other features: |
NB/ANL. Echo chamber. +10 KHz button. Roger beep. Talkback.
SWR-meter. Auto dimmer. Cooling fans.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: |
AM: 0.5 uV (10 dB S+N/N)
FM: 0.25 uV (12 dB S+N/N)
SSB/CW: 0.15 uV (10 dB S+N/N)
|
| Squelch sensitivity: | Less than 0.5 uV (Threshold) |
| Selectivity: | 55 dB (Adjacent channel) |
| Image rejection: | 50 dB |
| AF output power / speaker: | 2.5 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM/SSB: +450 W (PEP)
FM/CW: +150 W
|
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Malaysia, 2024-20xx |
| Main PCB: |
EPT990015Z by Ranger
Double sided with mainly SMD components
|
| Sub PCBs: |
EPAC40010F - 450 W amplifier board
and others...
|
| Additional info: |
One RT1 driver and two RT5 finals.
The 450 W amplifier sports eight RT6 transistors.
New price, july 2026 in the US: $849.95
|
| Related documents: |
User manual (863 KB)
PLL: MC145106
|
| Known markets and approvals: |
Export
No known approvals for CB use
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
