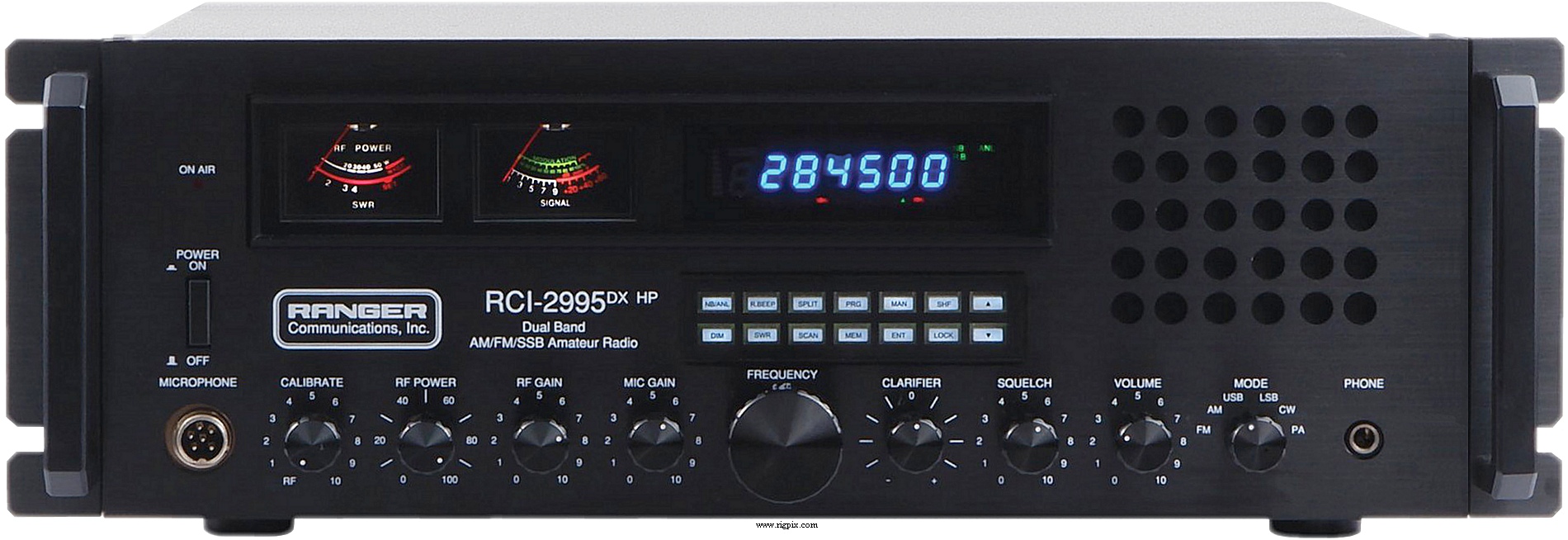

| GENERAL |

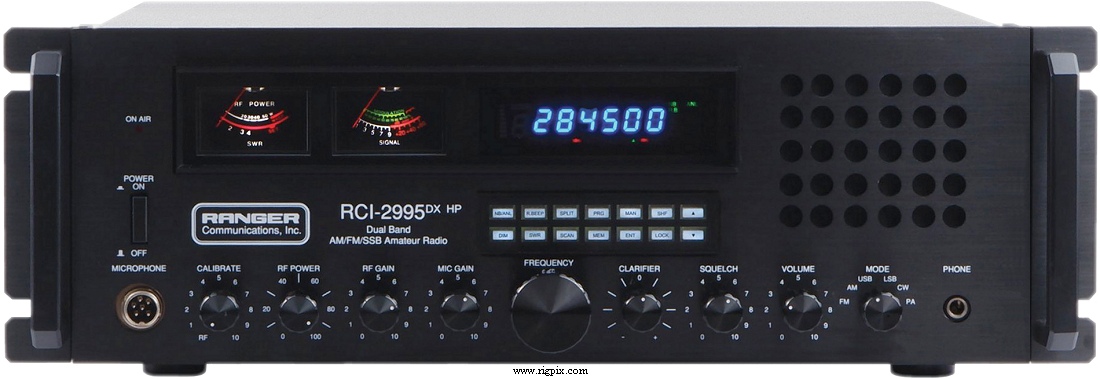

| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: | 24-32 MHz |
| Channels / tuning steps: | 100 Hz, 1 / 10 / 100 KHz, 1 MHz |
| Mode: | AM / FM / SSB / CW |
| Frequency control: | PLL/CPU |
| Frequency stability: | 0.001% @ -20 to +50°C (-4 to 122°F) |
| Clarifier or Delta tune: | ±5 KHz |
| Power supply: | Mains: 100-120 VAC (Fixed power cord) |
| Current drain / power consumption: | RX: ? W
TX: Max 300 W |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 483*210*305 mm (19*8.25*12") |
| Weight: | ? Kg (? lb) |
| Other features: |
PA. ANL/NB. Repeater split. Dimmer. 16 memories with scanning.
Variable RF output power. Roger beep. SWR meter. Frequency
counter jack.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne (SSB/CW)
1st IF: 10.695 MHz
Double conversion superheterodyne (AM/FM)
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: LT455HT
|
| Sensitivity: |
AM: 0.5 uV (10 dB S/N)
FM: 0.25 uV (12 dB SINAD)
SSB/CW: 0.15 uV (10 dB S/N)
|
| Squelch sensitivity: | Less than 0.7 uV (Threshold) |
| Selectivity: |
AM/FM: 10 KHz (-50 dB)
SSB: 4 KHz (-60 dB)
|
| Image rejection: | >50 dB |
| AF output power / speaker: | 3 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM/FM/CW: 80 W (RMS)
SSB: 200 W (PEP)
|
| Modulation system: |
AM: Class B amplitude modulation
SSB: Double balanced modulation
|
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 6-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Malaysia, 2023-202x |
| Main PCB: |
EPT695015BR by Ranger
Double sided with mainly SMD components
|
| Sub PCBs: |
EPAC10010D - 200 W amplifier board
and others...
|
| Additional info: |
New price, april 2026 in the US: $799.99 to $955.00 (Depending on seller)
|
| Related documents: |
User manual (972 KB)
|
| Known markets and approvals: |
Export
No known approvals for CB use
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
?
|
CTCSS/PL encoder/decoder unit
|
|
