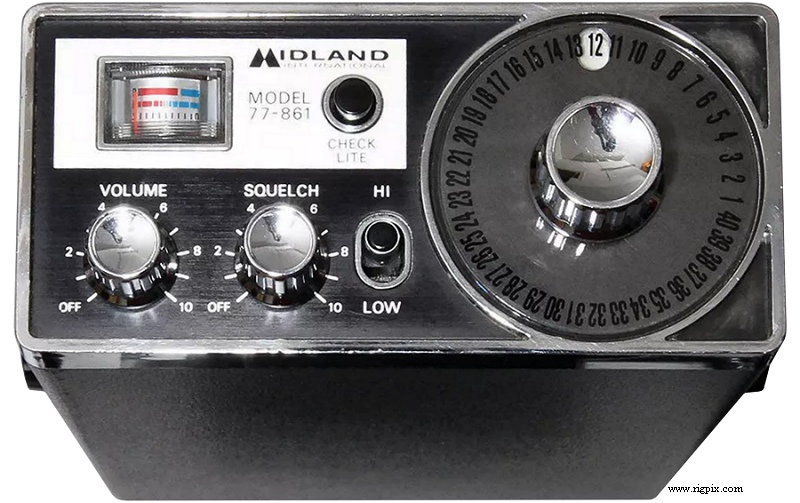

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |

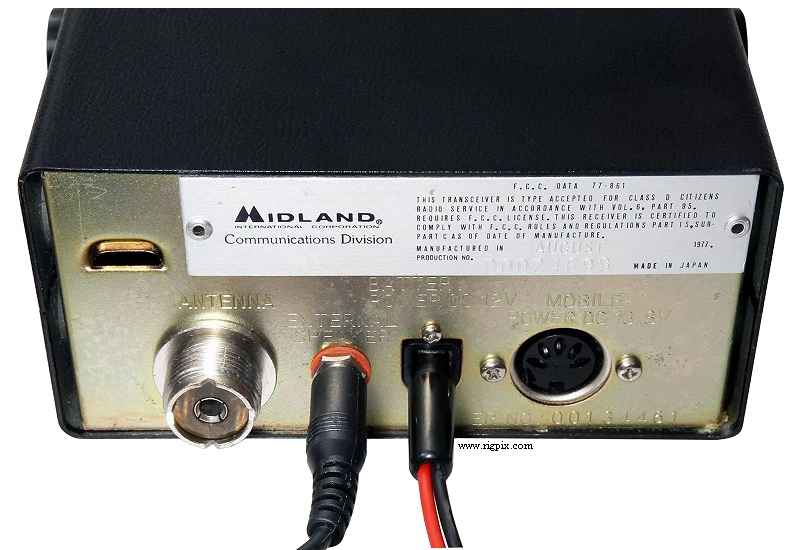

| Power supply: | 13.8 VDC mobile supply (5-pin DIN 180°)
or 12 VDC portable battery supply (Male barrel jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239
or telescopic whip in portable configuration |
| Dimensions (W*H*D): | 111*51*171 mm (4.38*2*6.75") |
| Weight: | 1.47 Kg (3.25 lb) |
| Other features: |
Could also be configured for portable operation in
a leathercase with battery pack and telescopic whip.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S+N/N) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 2.8 W at ?% distortion / No internal speaker |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 4 W @ 13.8 VDC (Mobile) or 3 W @ 12 VDC (Portable)
Low: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 5-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1977-1980 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
See also the earlier 23 channel version.
|
| Related documents: | |
| Known markets and approvals: |
Canada
DOC: No. 395365085
USA
FCC Data: 77-861
|
| Sams Photofact #: | CB-188 (May 1978) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
