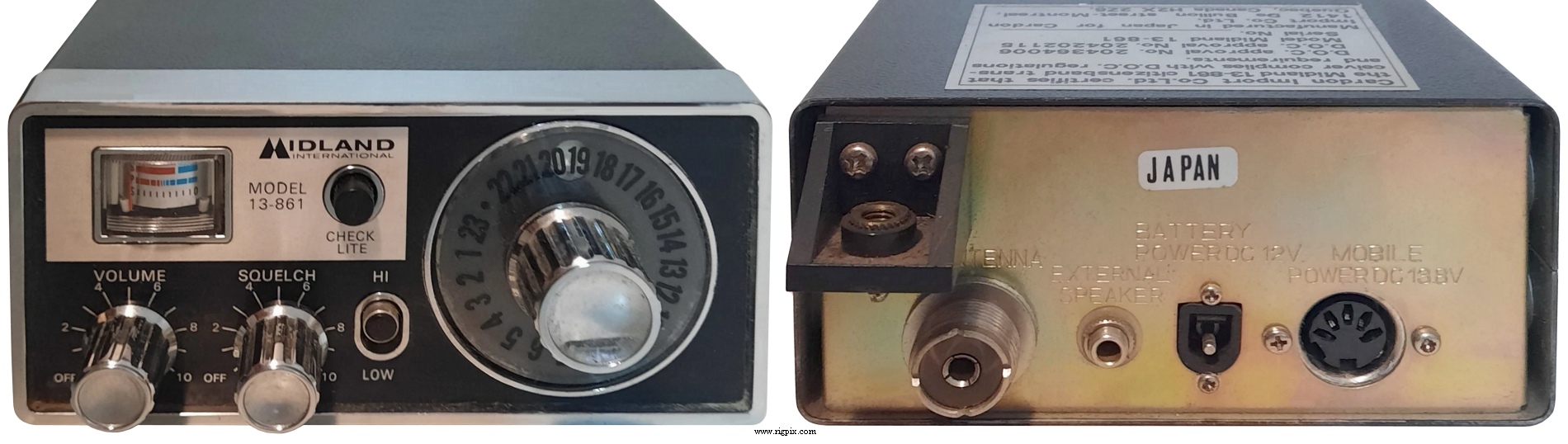

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | XTAL matrix (10 XTALs) |
| Frequency stability: | ±0.005% (No temperature reference) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC mobile supply (5-pin DIN 180°)
or 12 VDC portable battery supply (Male barrel jack)) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239
or telescopic whip in portable configuration |

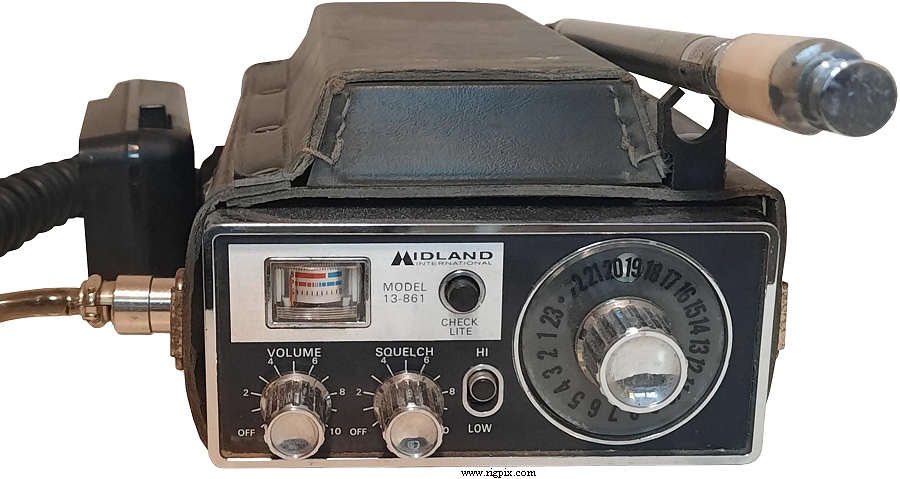

| Dimensions (W*H*D): | 111*51*171 mm (4.38*2*6.75") |
| Weight: | 1.47 Kg (3.25 lb) |
| Other features: |
Could also be configured for portable operation in
a leathercase with battery pack and telescopic whip.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 11.275 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S+N/N) |
| Squelch sensitivity: | 0.5 uV (Threshold)
300 uV (Tight) |
| Selectivity: | 8 KHz (-6 dB) |
| Image rejection: | |
| AF output power / speaker: | 2.8 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 4 W @ 13.8 VDC (Mobile) or 3 W @ 12 VDC (Portable)
Low: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1976-197x (Discontinued) |
| Main PCB: | KM35806A by ? |
| Sub PCBs: | KM405042A - XTAL board |
| Additional info: | |
| Related documents: |
User manual (3.1 MB)
RF driver: 2SC1760
RF final: 2SC1239
|
| Known markets and approvals: |
Canada
D.O.C. 204364006 & 204202115
USA
FCC: Type accepted Class D, part 95
|

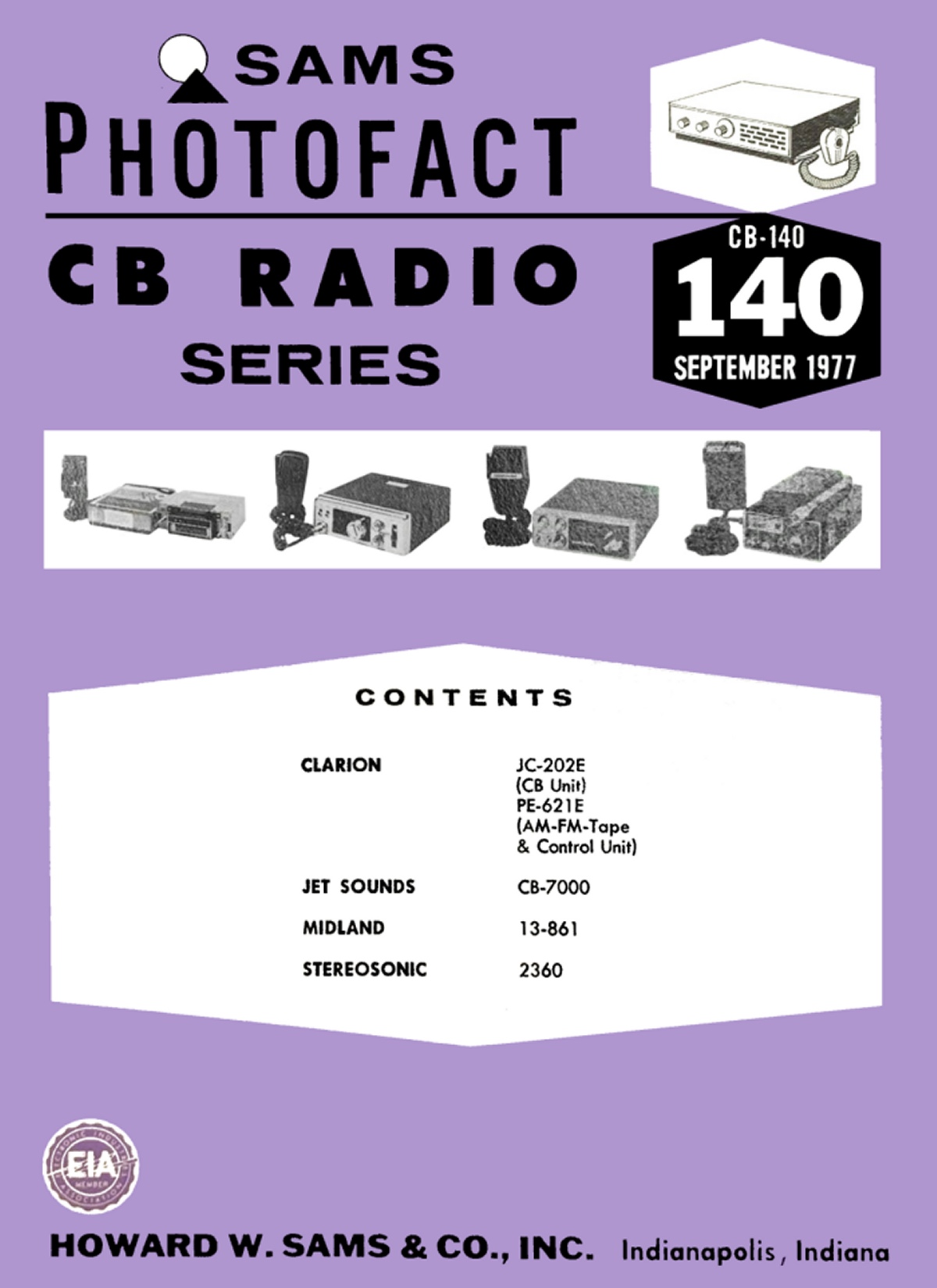

| Sams Photofact #: | CB-140 (September 1977) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
