| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: |
26.965-27.255 MHz
|
| Channels / tuning steps: | 23 |
| Mode: | AM / SSB |
| Frequency control: | XTAL matrix |
| Frequency stability: | 0.005% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | ±800 Hz |
| Power supply: | 13.8 VDC (Male 2-pin jack) |
| Current drain / power consumption: | RX: 500 mA (No signal)
TX: Less than 3 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 190*64*267 mm (7.5*2.5*10.5") |
| Weight: | 2.27 Kg (5 lb) |
| Other features: | PA. NB. Tone hi-cut. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 7.8 MHz
|
| Sensitivity: |
AM: 1 uV (10 dB S/N)
SSB: 0.5 uV (10 dB S/N)
|
| Squelch sensitivity: | 0.7 uV (Threshold) |
| Selectivity: |
SSB: 3 KHz (-6 dB)
|
| Image rejection: | 50 dB |
| AF output power / speaker: | 3.5 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
SSB: 12 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | 500 ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | 7 mV for 50% AM modulation or 4 W PEP SSB |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1975-1976 (Discontinued) |
| Main PCB: |
PC-003AA by Uniden
|
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (3.9 MB)
AF amplifier: Two 2SC1096
RF driver: 2SC1306
RF final: 2SC1307
|
| Known markets and approvals: |
USA
FCC: Part 95 compliant
|

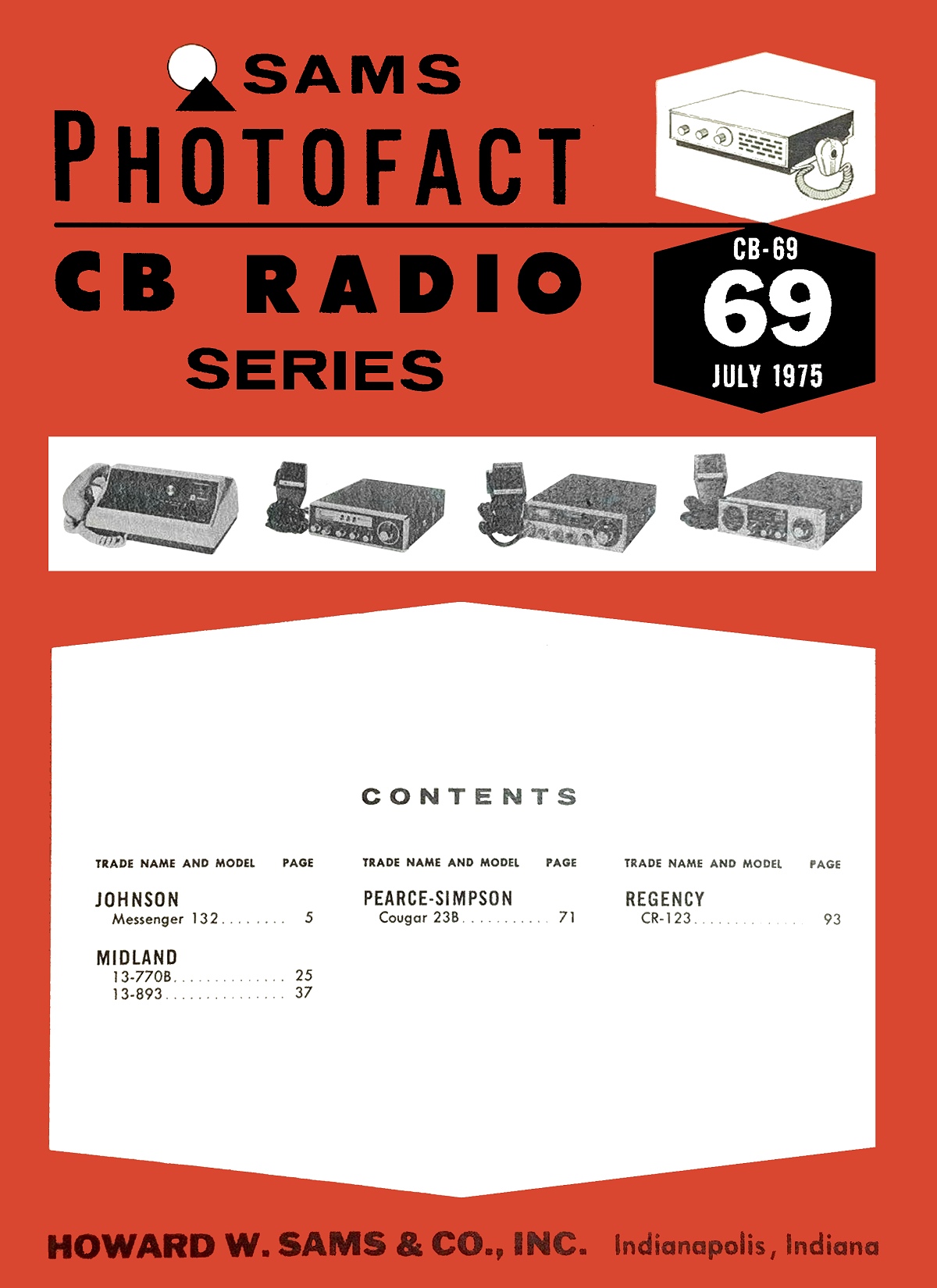

| Sams Photofact #: | CB-69 (July 1975) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
