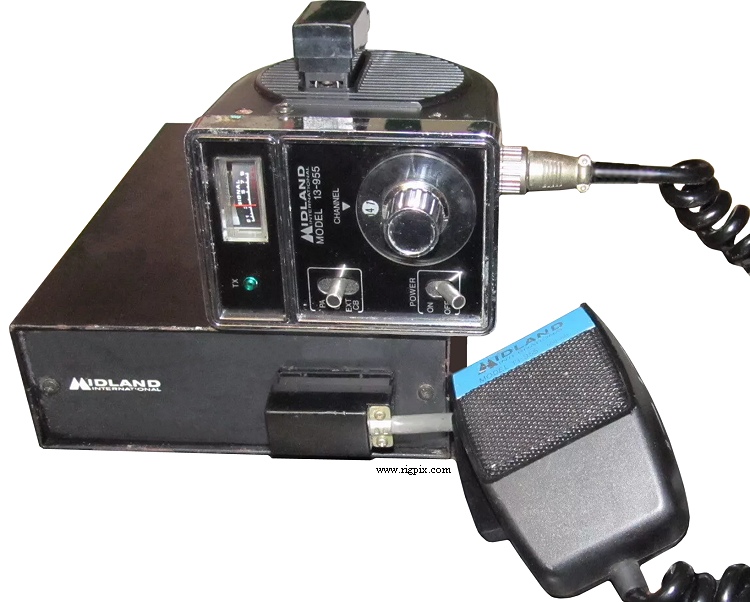

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz
|
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | 0.005% (No temperature reference) |
| Clarifier or Delta tune: | No |
| Power supply: | 12-14 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Transceiver: 165*58*215 mm (6.5*2.28*8.46")
Control head: 75*105*100 mm (2.95*4.13*3.94") |
| Weight: | Transceiver: 1.5 Kg (3.3 lb)
Control head: 400 g (14.1 oz) |

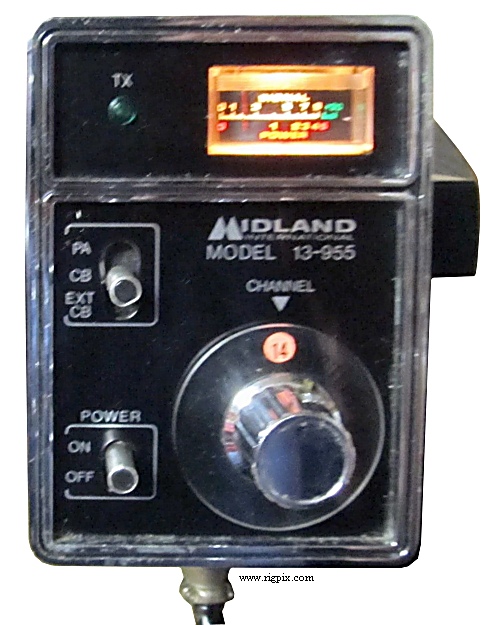

| Other features: |
PA. Split mount. Volume and squelch controls are
located on the right side of the microphone.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S/N) |
| Squelch sensitivity: | 0.5 uV (Threshold)
500 uV (Tight) |
| Selectivity: | 20 KHz (-45 dB) |
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max AM modulation (Factory set): | Near 100% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 500 ohm / 6-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1976-1976 (Discontinued) |
| Main PCB: |
PTBM036AOX by Cybernet Electronics Corporation
Single sided with through-hole components
|
| Sub PCBs: |
PTCN001AOX - Multi-pin connector board
PTCN002AOF - Resistor board
PTCZ001BOX - Control head board
PTCZ002AOX - Relay board
|
| Additional info: | |
| Related documents: |
PLL: PLL02A
|
| Known markets and approvals: |
USA
FCC Data: 13-955
|

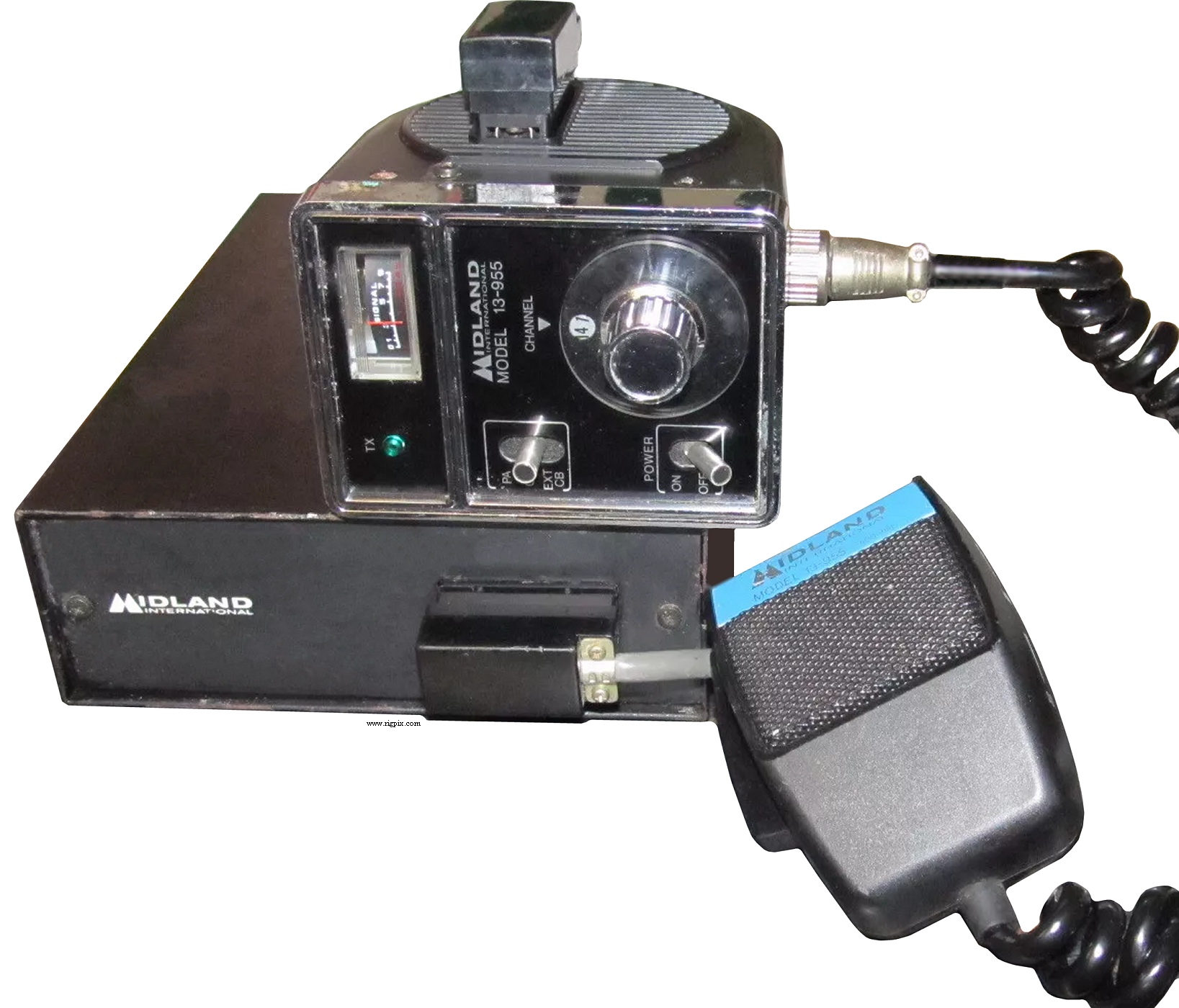

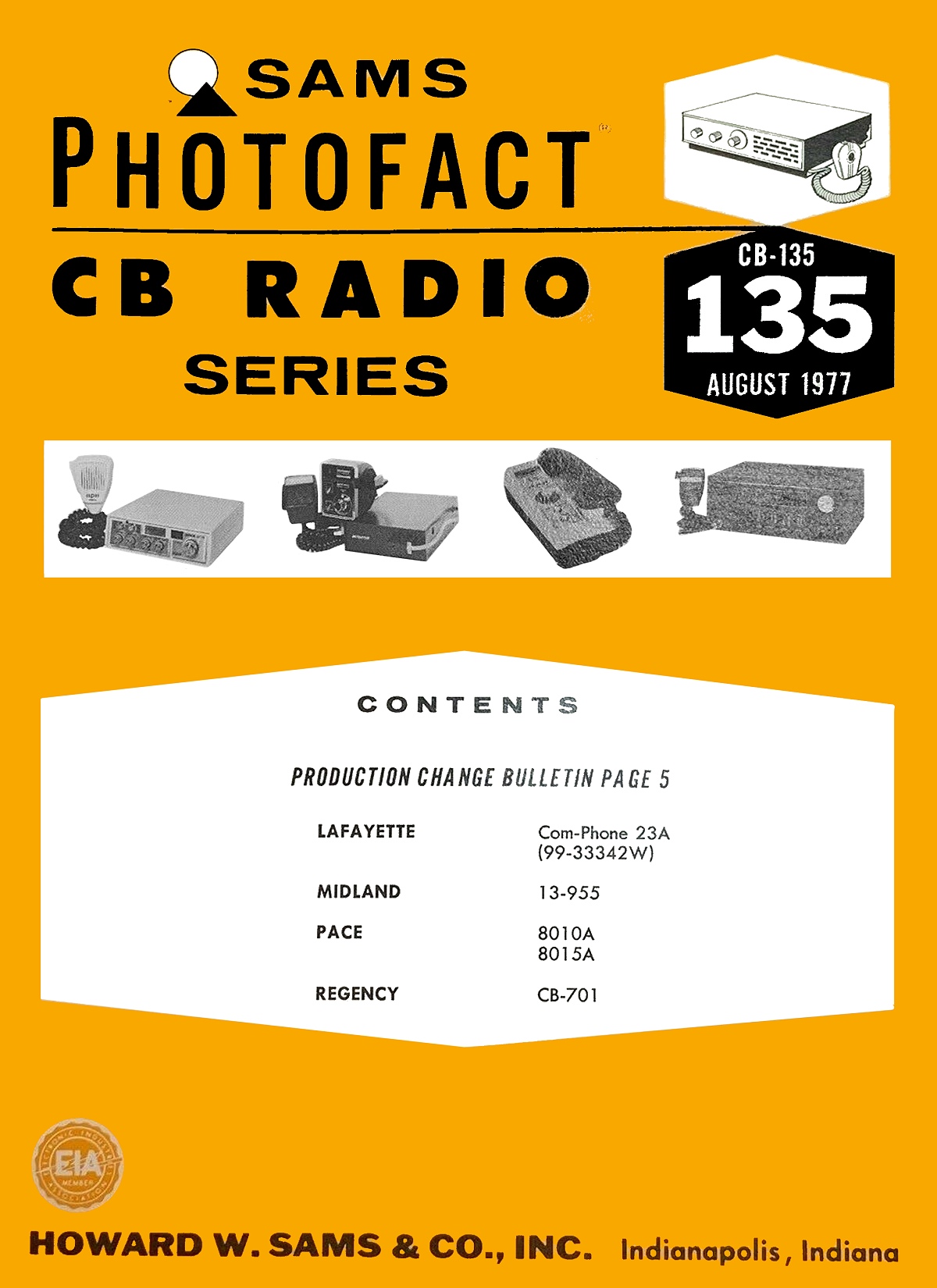

| Sams Photofact #: | CB-135 (August 1977) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
