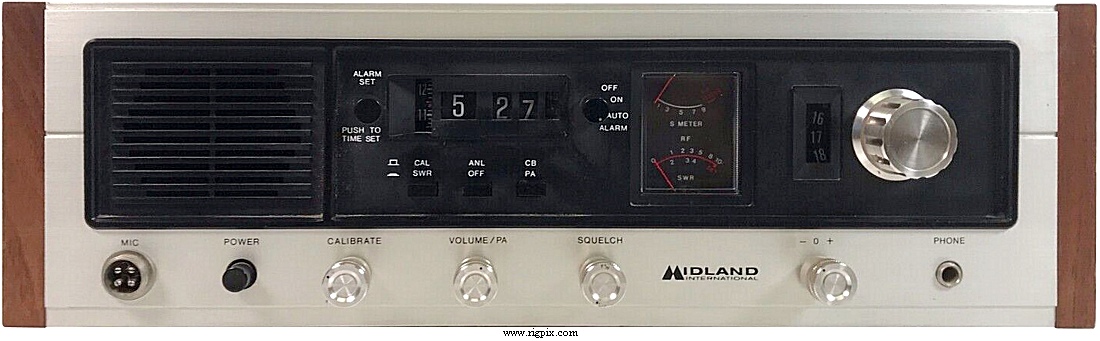

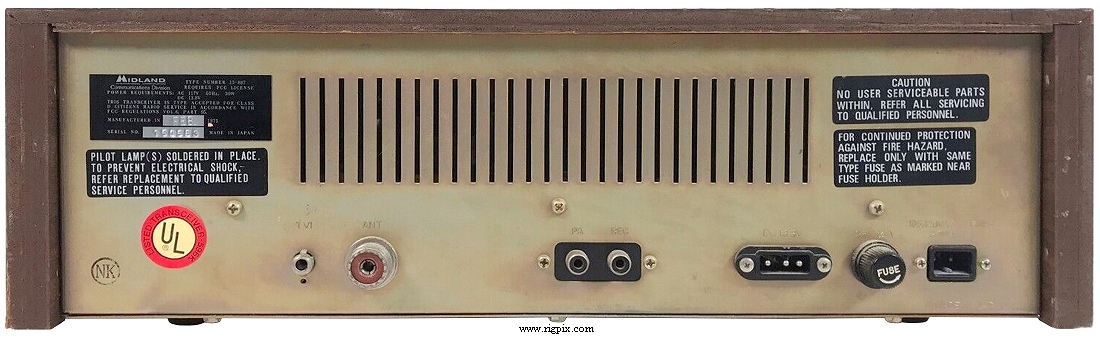

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | XTAL matrix |
| Frequency stability: | ±0.005% (No temperature reference) |
| Clarifier or Delta tune: | ±1 KHz |
| Power supply: | Mains: 117 VAC (Male 2-pin jack)
or 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: ? mA @ 13.8 VDC
TX: ? A @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | PA. ANL. SWR meter. Alarm clock. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.635 to 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S+N/N) |
| Squelch sensitivity: | 0.5 uV (Threshold)
100 uV (Tight) |
| Selectivity: | 45 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | - |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | High level Class B |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1974-1976 (Discontinued) |
| Main PCB: | EPA-0572A by ? |
| Sub PCBs: |
EPA-0569A - Channel selector and XTAL board
EPA-0611A - SWR board
EPA-0612A - PSU board
|
| Additional info: | |
| Related documents: |
Schematic diagram (862 KB)
|
| Known markets and approvals: |
USA
FCC: Type accepted Class D, part 95
|
| Sams Photofact #: | CB-67 (June 1975) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
