Lafayette Telsat-1000 (99-33508W)

A picture of Lafayette Telsat-1000 (99-33508W)

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.255 MHz
Channels / tuning steps:23
Mode:AM
Frequency control:XTAL-matrix (14 pcs)
Frequency stability:?%
Clarifier or Delta tune:No
Power supply:Mains:105-120 VAC (Fixed power cord)
or 13.8 VDC (3-pin connector)
Current drain / power consumption:RX: ? mA @ 13.8 VDC
TX: ? A @ 13.8 VDC
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):284*113*216 mm (11.19*4.44*8.5")
Weight:? Kg (? lb)
Other features:PA. Local/Distance switch.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:0.7 uV (10 dB S/N)
Selectivity:20 KHz (-45 dB)
Image rejection:
AF output power / speaker:2.5 W at ?% distortion / ? ohm
External speaker connector:1/4-inch, 4-8 ohm




TRANSMITTER SECTION
RF output power:~3.5 W (5 W input)
Modulation system:
FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 5-pin (180° DIN)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Korea, 1976-197x (Discontinued)
Main PCB:451201E by Maxon
Sub PCBs:
Additional info: New price 1976 in the US: $149.95.
New price 1977 in the US: $149.95.
Related documents:Schematic (152 KB)

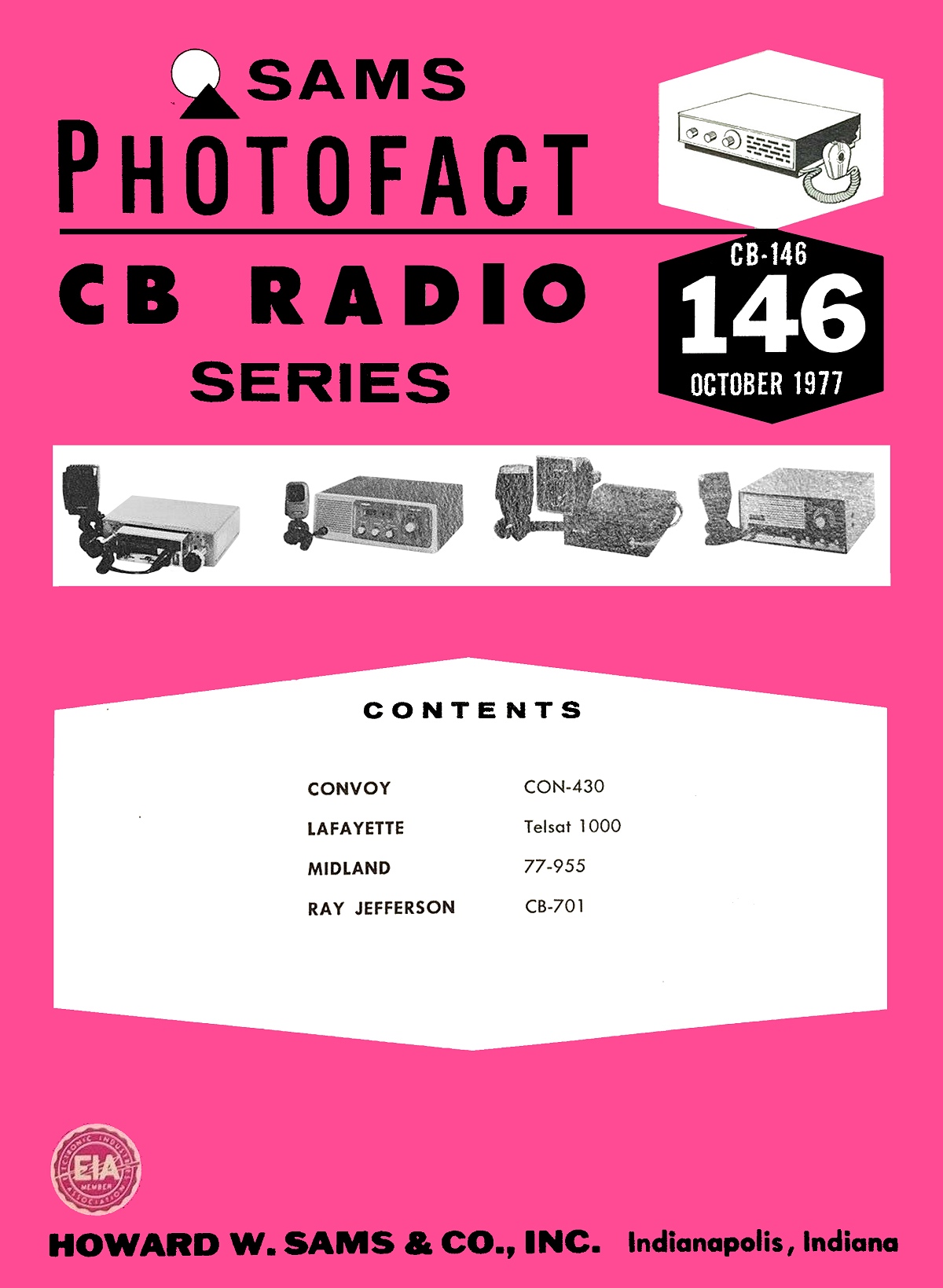

Sams Photofact #:CB-146 (October 1977)
