Lafayette Telsat-1023 (99-32997W)

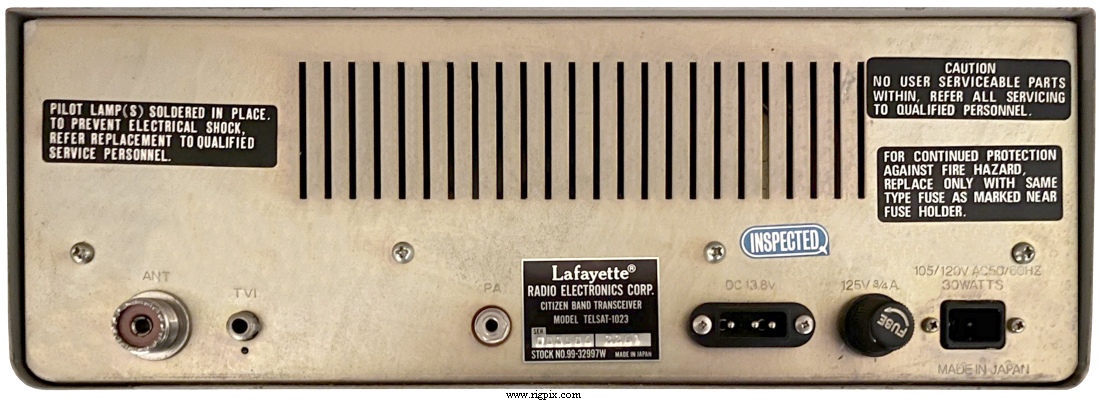

A picture of Lafayette Telsat-1023 (99-32997W)

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.255 MHz
Channels / tuning steps:23
Mode:AM
Frequency control:XTAL-matrix
Frequency stability:?%
Clarifier or Delta tune:±? KHz
Power supply:Mains: 105-120 VAC
or 12.6 VDC (Male 3-pin jack)
Current drain / power consumption:RX: ? mA @ 12.6 VDC
TX: ? A @ 12.6 VDC
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):325*108*211 mm (12.81*4.25*8.31")
Weight:? Kg (? lb)
Other features:PA. ANL. "Range boost".




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:1 uV (10 dB S/N)
Selectivity:10 KHz (-40 dB)
Image rejection:55 dB
AF output power / speaker:3 W at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:~3.5 W (5 W input)
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?-pin (DIN)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 1975-197x (Discontinued)
Main PCB:
Sub PCBs:
Additional info: New price 1975 in the US: $179.95
New price 1976 in the US: $179.95
Related documents:
Sams Photofact #:CB-78 (December 1975)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
