Lafayette Com-Phone 23A (99-33342W)

A picture of Lafayette Com-Phone 23A (99-33342W)

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.255 MHz
Channels / tuning steps:23
Mode:AM
Frequency control:PLL (PLL02A)
Frequency stability:Max ? ppm
Clarifier or Delta tune:No
Power supply:12.6 VDC
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):127*102*241 mm (5*4*9.5")
Weight:? Kg (? lb)
Other features:PA. Tone control.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:0.7 uV (10 dB S/N)
Selectivity:10 KHz (-45 dB)
Image rejection:
AF output power / speaker:3 W at ?% distortion / 8 ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:~3.5 W (5 W input)
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -50 dB
Microphone impedance / connector:? ohm / ?-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 1976-197x (Discontinued)
Main PCB:
Sub PCBs:
Additional info:New price 1976 in the US: $189.95
Related documents:PLL: PLL02A

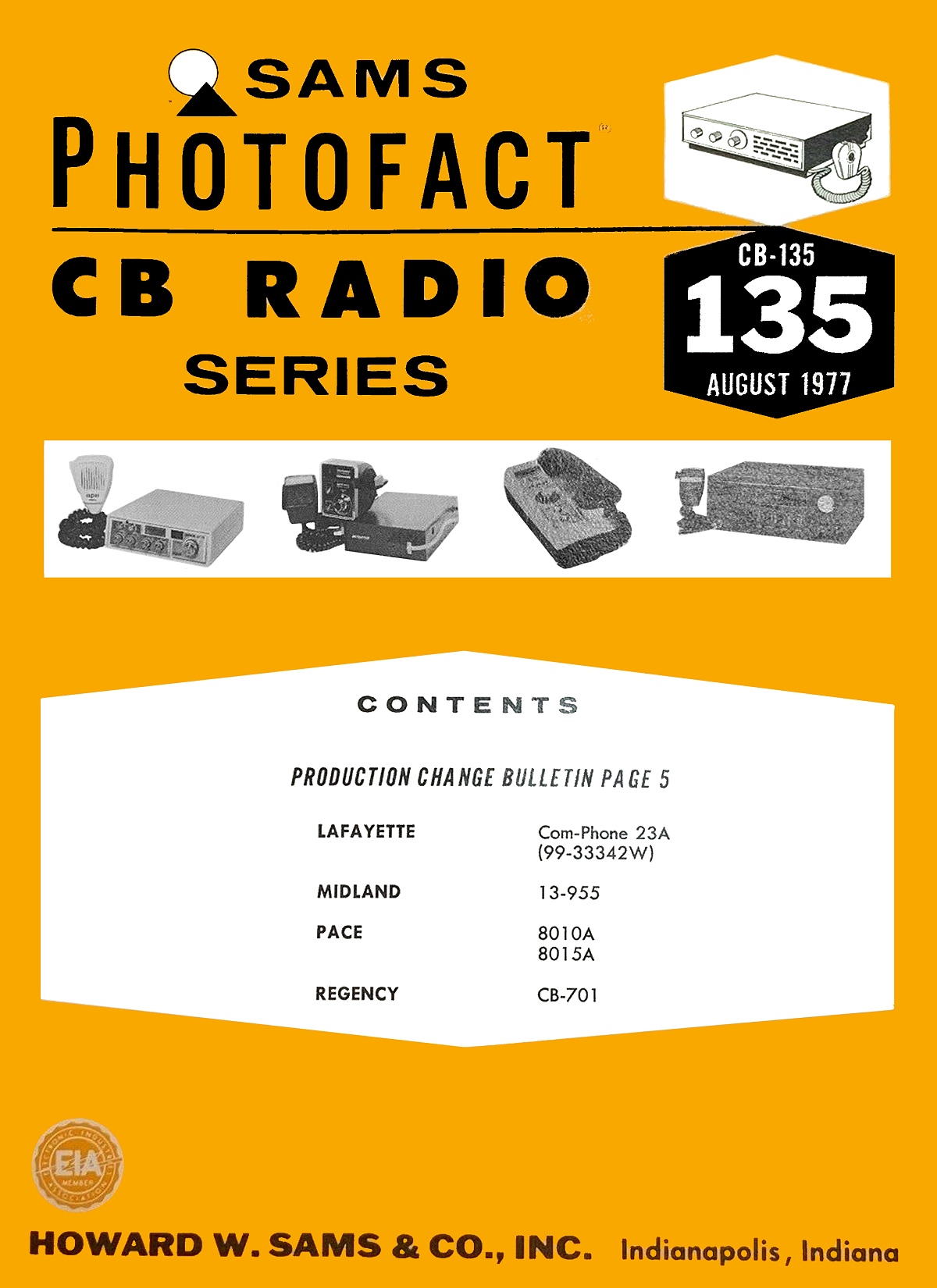

Sams Photofact #:CB-135 (August 1977)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
