| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |

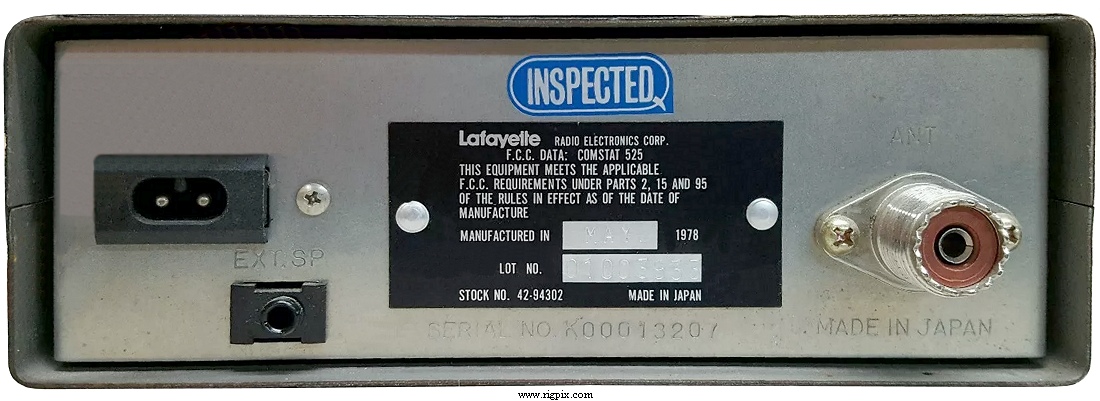

| Power supply: | 13.8 VDC (Male 2-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS jack (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 5-pin DIN (180°) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1978-197x (Discontinued) |
| Main PCB: | PTBM075AOX by Cybernet Electronics Corporation |
| Sub PCBs: |
PTLD027AOX - LED channel display board
PTSW037AOX - Channel selector board
|
| Additional info: | |
| Related documents: |
AF amplifier: BA521
PLL: PLL02A
|
| Approval / Market: |
USA
FCC Data: Comstat 525
|
| Sams Photofact #: | CB-266 (July 1979) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
