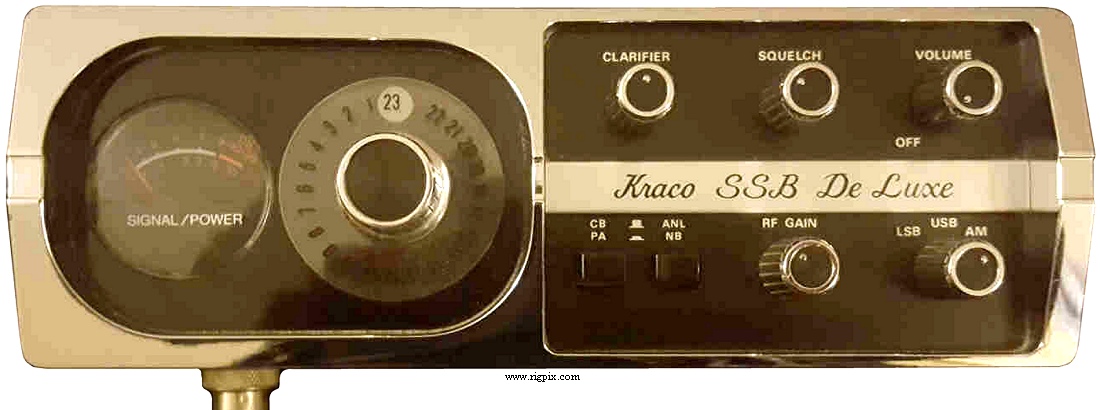

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM / SSB |
| Frequency control: | XTAL matrix (10 XTALs) |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | ±600 Hz |
| Power supply: | 11.5-14.5 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 202*70*245 mm (7.95*2.76*9.64") |
| Weight: | 2.5 Kg (5.51 lb), with mounting bracket |
| Other features: | PA. ANL. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 11.2735 MHz - Crystal filter: YF11.275B
|
| Sensitivity: |
AM: 1 uV (10 dB S/N)
SSB: 0.25 uV (10 dB S/N)
|
| Squelch sensitivity: |
Threshold
AM: 1 uV
SSB: 0.7 uV
Tight
AM: 500 uV
SSB: 20 uV
|
| Selectivity: |
AM: 4 KHz (-6 dB)
SSB: 2.4 KHz (-6 dB)
|
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
SSB: 12 W (PEP)
|
| Modulation system: |
AM: High level class B
SSB: Balanced ring modulator with crystal lattice filter
|
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1976-1977 (Discontinued) |
| Main PCB: |
EPO-0645-02 or PTBM034AOX by Cybernet Electronics Corporation
Single sided with through-hole components
|
| Sub PCBs: |
EPO-0654 or PTSY007AOX - Multi function board
|
| Additional info: | |
| Related documents: |
User manual (2.5 MB)
RF driver: 2SC1306
RF final: 2SC1307
|
| Known markets and approvals: |
USA
FCC Data: KCB-2340
|
| Sams Photofact #: | CB-162 (January 1978) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
