| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (MSM5807) |
| Frequency stability: | ? ppm |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: | PA. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S/N) |
| Selectivity: | 45 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | TS jack (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | High level Class B |
| FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 500 ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (1.3 MB)
Schematic diagram (748 KB)
PLL: MSM5807 |

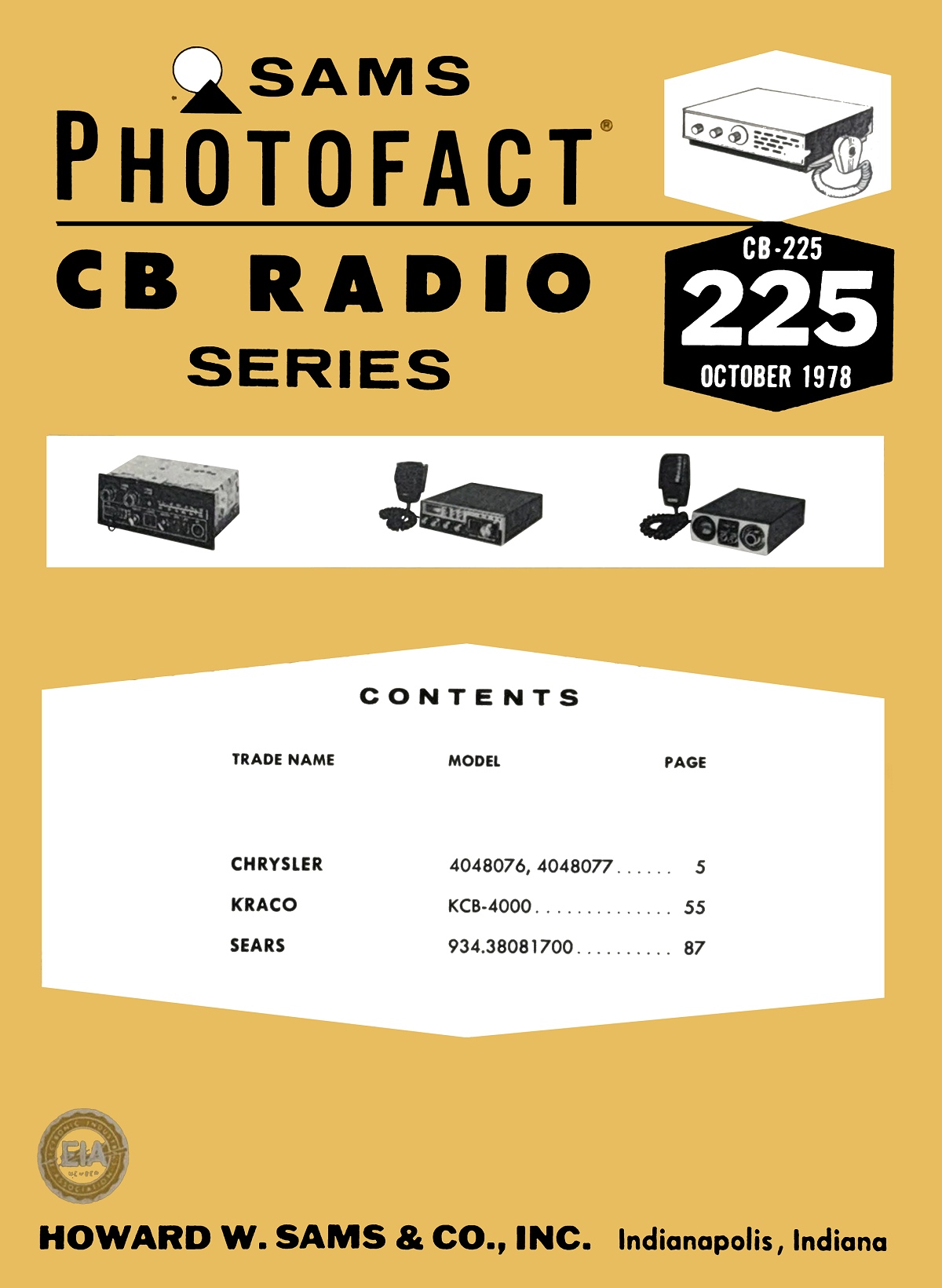

| Sams Photofact #: | CB-225 (October 1978) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
