| GENERAL |

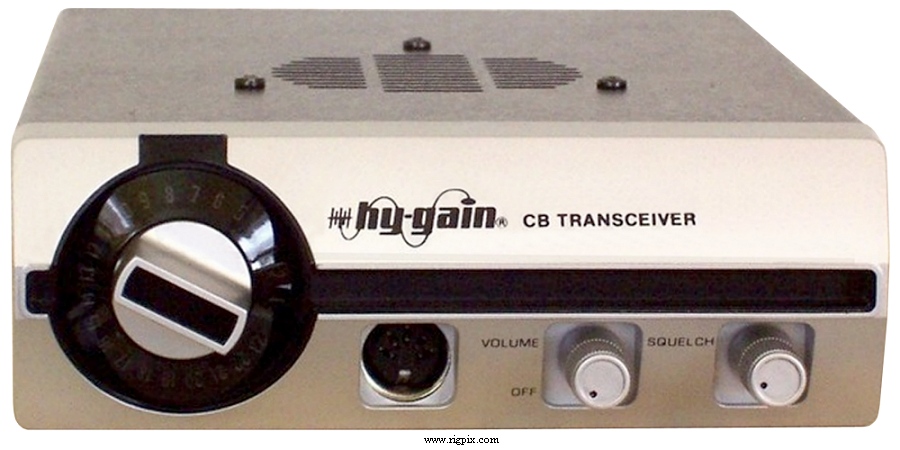

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | PLL (PLL02A) |
| Frequency stability: | ? ppm |
| Clarifier or Delta tune: | No |
| Power supply: | 11.5-14.5 VDC |
| Current drain / power consumption: | RX: 300 mA (No signal)
TX: Less than 1.2 A @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 162*56*213 mm (6.38*2.2*8.39") |
| Weight: | 1.43 Kg (3.15 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S+N/N) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | TS jack (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 5-pin (DIN 180°) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1976-1976 (Discontinued) |
| Main PCB: | PTBM036AOX by Cybernet Electronics Corporation |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
Service manual (5.1 MB)
Block diagram (696 KB)
Schematic (1.1 MB)
PLL: PLL02A
|
| Sams Photofact #: | CB-148 (November 1977) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
