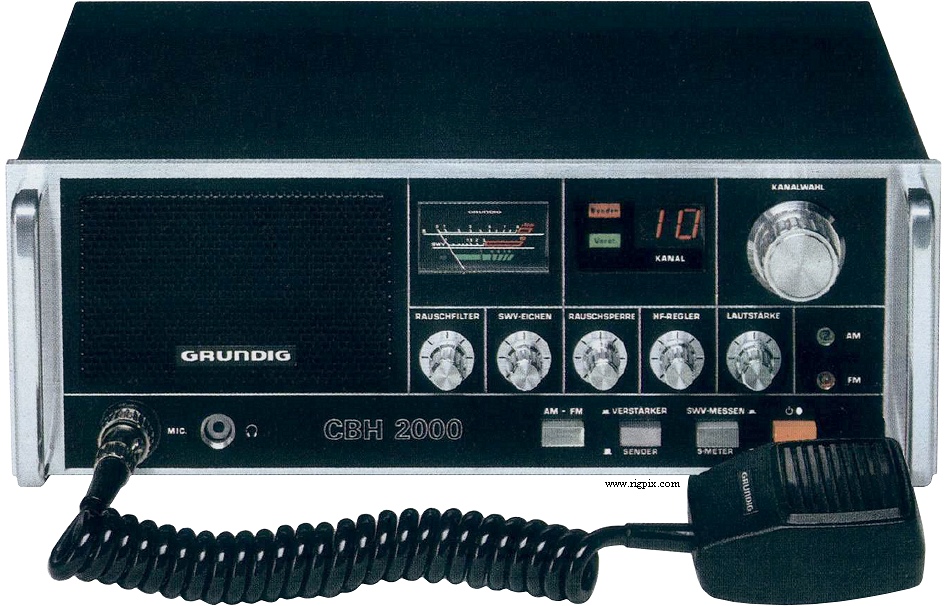

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 27.005-27.135 MHz |
| Channels / tuning steps: | 12 (Channel 4 to 15) |
| Mode: | AM / FM |
| Frequency control: | PLL (TC9100) |
| Frequency stability: | ±0.002% (No temperature reference) |
| Clarifier or Delta tune: | No |
| Power supply: | Mains: 220 VAC (Fixed power cord) |
| Current drain / power consumption: | RX: ? W
TX: Less than 40 W |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 340*120*270 mm (13.4*4.72*10.63") |
| Weight: | ? Kg (? lb) |
| Other features: | PA. SWR meter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.25 uV (12 dB S/N) |
| Squelch sensitivity: | 0.1 uV (Threshold)
100 uV (Tight) |
| Selectivity: | 70 dB (Adjacent channel) |
| Image rejection: | 80 dB |
| AF output power / speaker: | 5 W at ?% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 500 mW |
| Modulation system: | |
| Max AM modulation (Factory set): | 98% |
| Max FM deviation (Factory set): | ±2.2 KHz |
| Spurious emissions: | Better than -80 dB |
| Microphone impedance / connector: | 600 ohm / 7-pin DIN |
| Microphone input level: | AM: 2 mV for 70% modulation
FM: 2 mV for ±2 KHz deviation |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1978-1979 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
Service manual (6.6 MB, In german)
|
| Known markets and approvals: |
West Germany
FTZ Nr. KF-058/78
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
