| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
Export mode
24.265-29.655 MHz
10 m
28.015-28.465 MHz
|
| Channels / tuning steps: | 480 (12*40, A-L) |
| Mode: | AM / FM / SSB |
| Frequency control: | PLL |
| Frequency stability: | 0.001% (No temperature reference) |
| Clarifier or Delta tune: | Coarse:±? KHz
Fine:±? Hz |

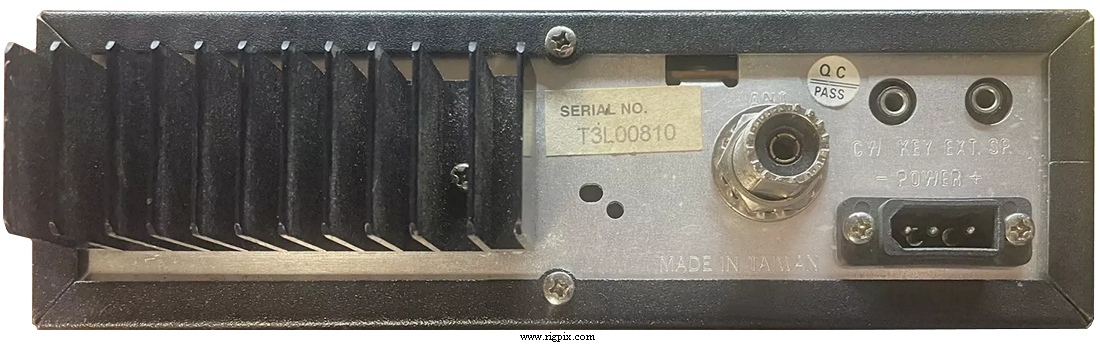

| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: |
ANL/NB. Roger beep. +10 KHz button. Digital echo. Talkback. SWR meter.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM/CW: 1 uV (10 dB S/N)
FM: 1 uV (20 dB S/N)
SSB: 0.5 uV (10 dB S/N)
|
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 50 dB |
| AF output power / speaker: | 2.5 W at ?% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| AM: | 10 W | ? W |
| FM: | 10 W | ? W |
| SSB (PEP): | 25 W | ? W |
| CW: | 10 W | ? W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 1997-20xx (Discontinued) |
| Main PCB: |
EPT690010C by Ranger
Single sided with through-hole components
|
| Sub PCBs: | |
| Additional info: | |
| Related documents: | |
| Sams Photofact #: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
