Uniden Bearcat BC-700A

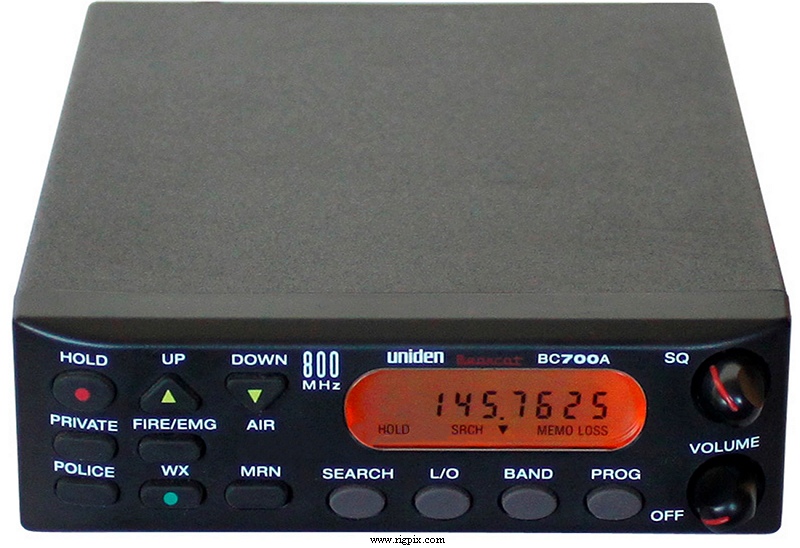

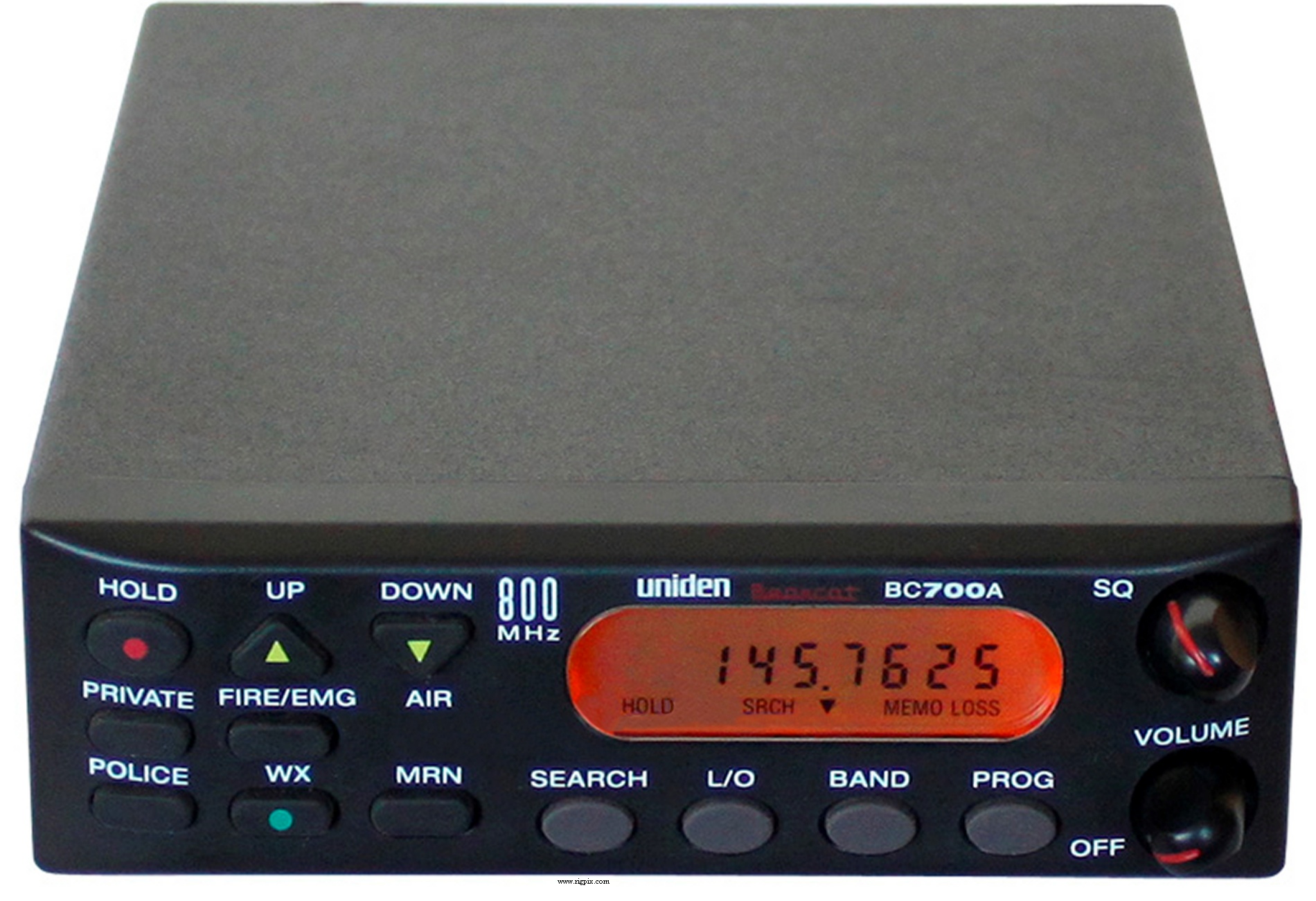

A picture of Uniden Bearcat BC-700A

SPECIFICATIONS

GENERAL
Type:HF/VHF/UHF receiver/scanner
Frequency range:29-54 / 108-174 / 406-512 / 806-956 MHz
(Cellular blocked in the US)
Tuning steps:5 / 12.5 / 25 KHz (Depending on band)
Frequency stability:? ppm
Mode:AM/FM
Channels/memory management: 1033 pre-programmed non-erasable public service channels
20 "Police" user programmable channels
10 "Fire/EMG" user programmable channels
20 "Private" user programmable channels
7 NOAA weather channels
1160-step "Air" band search
Supercap backup. Approximately 30 days retention with no power
Power supply:13.8 VDC (Barrel connector, center positive)
Current drain/power consumption:? mA
Antenna impedance/connector:50 ohm / BNC
Dimensions (W*H*D):132*41*176 mm (5.2*1.62*6.94")
Weight:482 g (1.06 lbs)
Other features:




RECEIVER SECTION
Receiver system:? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity: Nominal for 12 dB SINAD
29-54 MHz: 0.3 uV
108-137 MHz: 0.9 uV
137-174 MHz: 0.4 uV
406-512 MHz: 0.4 uV
806-956 MHz: 0.4 uV
Selectivity:
Image rejection:
AF output power/speaker:3 W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Philippines, 1992-1997 (Discontinued)
Additional info:FCC ID: AMWUB225A
Related documents:User manual (15.4 MB)
Modifications:
Reviews:
Options/Accessories:
AD-140U
BC-AT1
PLG-134
AC adapter
Mobile antenna
Motorola-to-BNC adapter

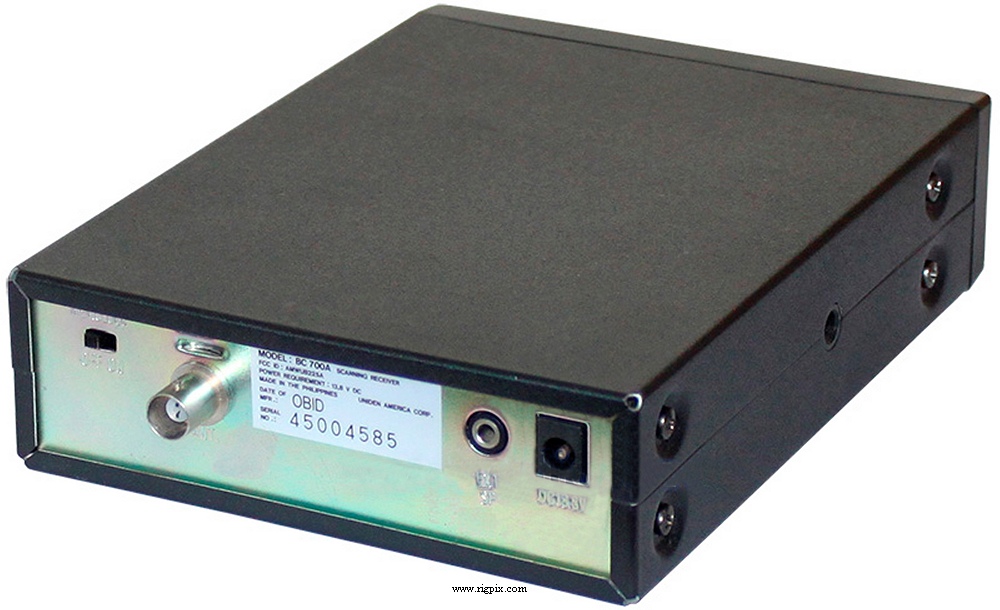

A rear picture of Uniden Bearcat BC-700A
