| GENERAL |

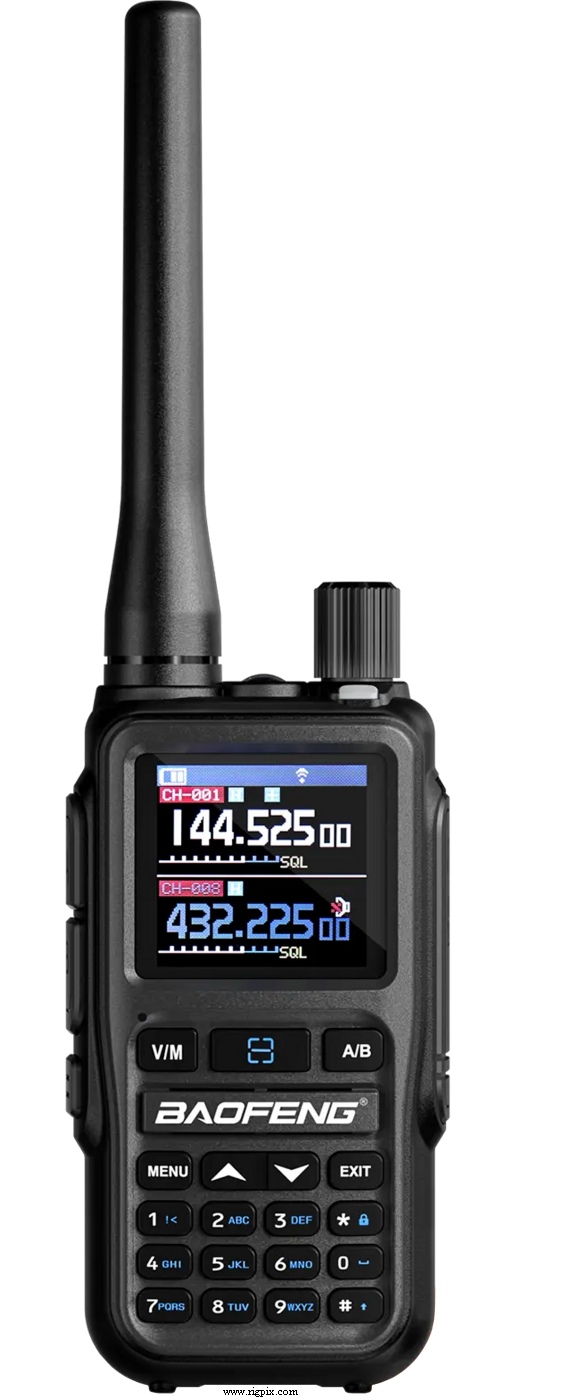

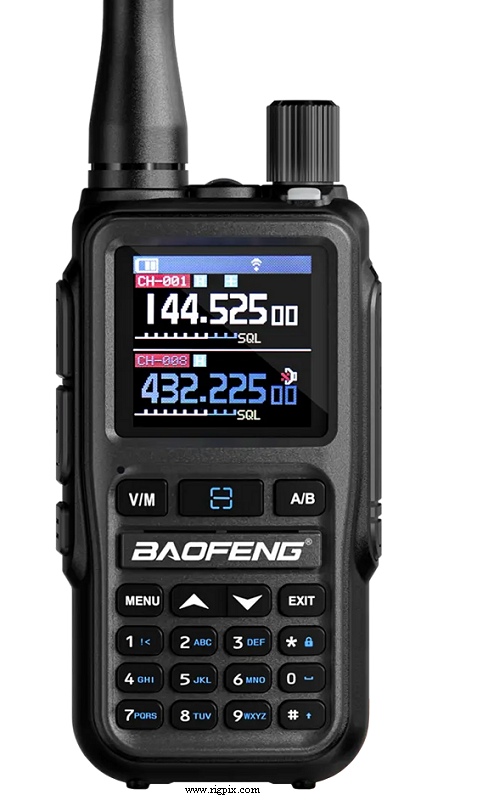

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 136-174 / 400-480 MHz
RX: 76-108 / 108-174 / 350-390 / 400-520 MHz
|
| Tuning steps: | 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 50 / 100 KHz |
| Frequency stability: | ±? ppm |
| Mode: | TX: FM / NFM
RX: AM / FM / NFM / WFM |
| Channels / memory management: |
999 regular with alpha tags
10 NOAA weather channels
|
| Repeater shift / offset: | Programmable |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: Less than 380 mA
TX: Less than 1.6 A |
| Antenna impedance / connector: | 50 ohm / SMA male |
| Dimensions (W*H*D): | 52*108*37 mm (2*4.3*1.5") |
| Weight: | 200 g (7.1 oz), with battery |
| Other features: |
CTCSS/PL and DCS. DTMF. USB-C charging. Dual PTT.
Bluetooth. PC and iOS/Android app programmable.
VOX. Stopwatch. Off-air frequency copy. Dual watch.
Roger beep. LED flashlight. Scrambler. Voice guide.
Tone call.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
SoC / Homodyne
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 1 W at ?% distortion / 16 ohm |
| External speaker connector: | TRS "Subminijack (2.5 mm) K-type |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| 2 m: | 5 W | 2 W |
| 70 cm: | 5 W | 2 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / TRS "Minijack (3.5 mm) K-type |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2025-202x |
| Additional info: |
Available in black, gray, green or orange color.
FCC ID: 2AJGM-5RMINI
|
| Related documents: | User manual (8.2 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BL-5RMINI
BS-UV25
|
Li-Ion battery pack. 7.4 V, 1600 mAh / 11.84 Wh
Tactical speaker-microphone
|
|
