| GENERAL |
| Type: | Digital audio / video baby monitor |
| Band/frequency range: | 2.4-2.48 GHz |
| Channels: | 4 |
| Transmission mode: | FHSS |
| Claimed max range: | Indoors: ? m (? ft)
Line of sight: 200 m (656 ft) |
| Power supply: |
Parent unit:
3.7 VDC (Motorola BF6X, 1880 mAh Li-Ion battery pack)
or 5 VDC external (Micro USB jack)
Baby unit:
2.4 VDC (900 mAh NiMH battery pack)
or 5 VDC external
|
| Current drain / power consumption: | Parent unit: ? mA
Baby unit: ? mA |
| Average battery life: | Parent unit: Up to 5 hrs
Baby unit: Up to 3 hrs |
| Dimensions (W*H*D): | Parent unit: 158*95*19 mm (6.22*3.74*0.75")
Baby unit (Diameter*Height): 95/70*120 mm (3.74/2.76*4.72") |
| Weight: | Parent unit: 224 g (7.9 oz)
Baby unit: 285 g (10.05 oz) |
| Other features: |
Talkback. Remote PTZ (2x digital zoom). Lullabies. Clock and timer.
Temperature sensor with alarms. Up to four cameras can be linked
and scanned in sequence or viewed as mosaic.
|
|
|
|
|
| RECEIVER / PARENT UNIT |
| Screen: | 5" (12.7 cm) Color LCD
480*272 pixels (130560) |
| Sensitivity: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER / BABY UNIT |
| Camera: | CMOS (1 Megapixel) |
| IR night vision / Range: | Yes / ? m (? ft) |
| RF output power: |
10 mW ERP (Average)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / Internal only |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China (By Binatone), 2016-20xx (Discontinued) |
| Additional info: |
At about 3 to 4 fps, this system does not produce smooth video, but
it's more than adequate for its intended purpose.

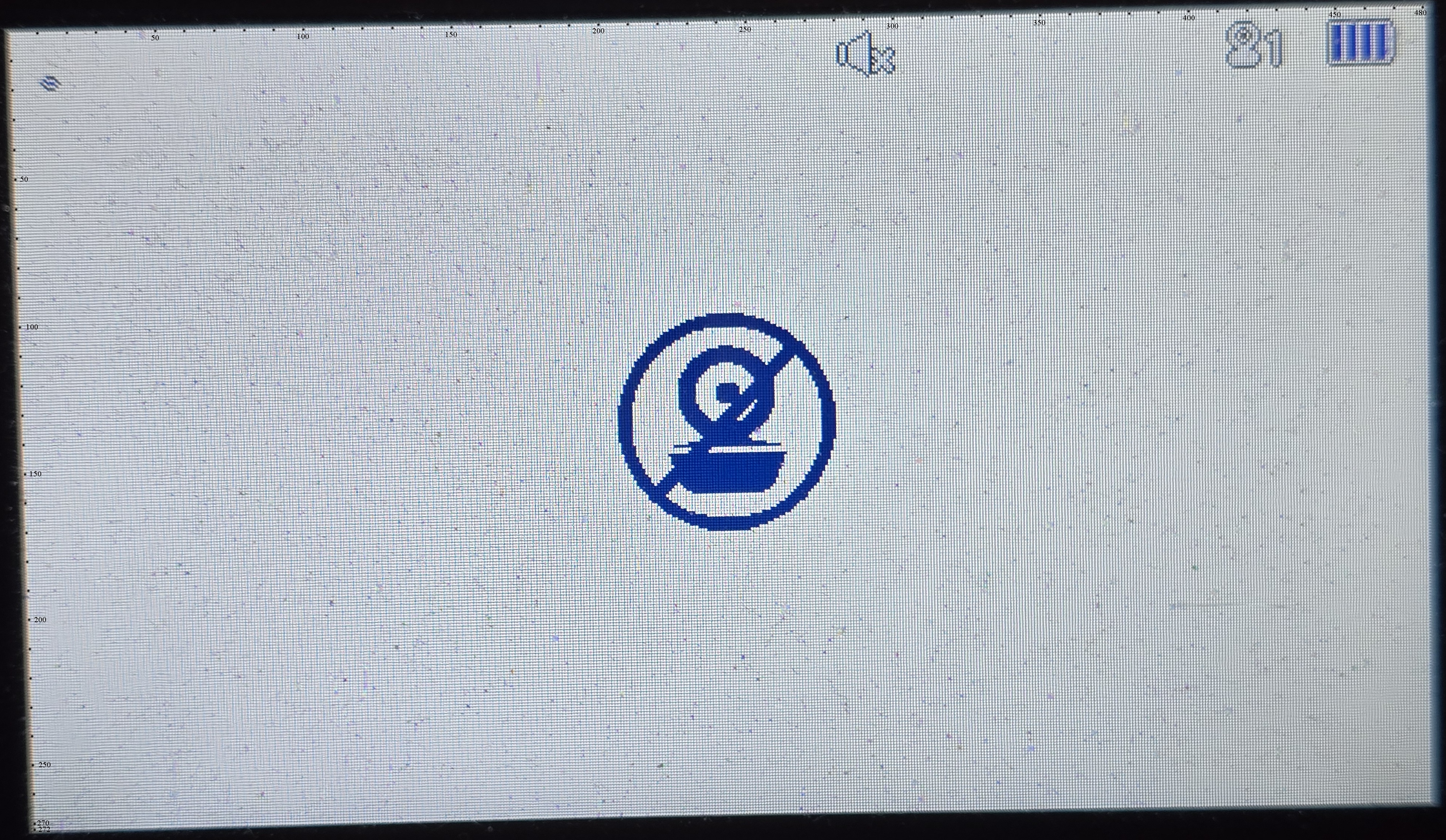

I couldn't find the pixel specification for the display in the parent
unit anywhere, so guess what? I had to take a photo of it, blow it
up in my editing software, and actually count all those pixels myself.
Insane, I know, haha! Here's the photo, including my markings in the
form of black dots every tenth pixel, and the dust specks I forgot to
wipe before taking the photo.
|
| Related documents: | User manual (5.5 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
