| GENERAL |

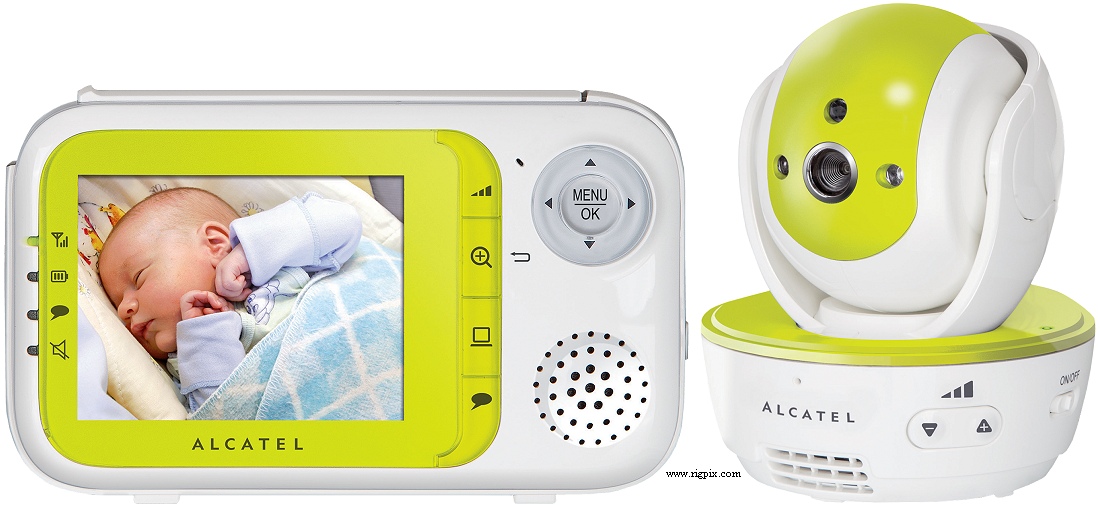

| Type: | Digital audio / video baby monitor |
| Band/frequency range: | DECT / 1.8 GHz |
| Channels: | ? |
| Transmission mode: | GFSK |
| Claimed max range: | Indoors: 50 m (? ft)
Line of sight: 250 m (? ft) |
| Power supply: |
Parent unit:
3.7 VDC (950 mAh LiPo battery)
or 6 VDC external
Baby unit:
6 VDC external
|
| Current drain / power consumption: | Parent unit: ? mA
Baby unit: ? mA |
| Average battery life: | Parent unit: Up to 9 hrs
Baby unit: - |
| Dimensions (W*H*D): | Parent unit: 124*74*29 mm (4.88*2.91*1.14")
Baby unit: 85*104*94 mm (3.35*4.09*3.7") |
| Weight: | Parent unit: ? g (? oz)
Baby unit: ? g (? oz) |
| Other features: |
Talkback. Remote PTZ camera. VOX. Temperature sensor with alerts.
Silent mode with audio alert. Out-of-range alert. Up to four cameras
can be linked.
|
|
|
|
|
| RECEIVER / PARENT UNIT |
| Screen: | 2.8" (7.1 cm) Color LCD
QVGA 320*240 pixels (76800) |
| Sensitivity: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER / BABY UNIT |
| Camera: | CMOS |
| IR night vision / Range: | Yes / ? m (? ft) |
| RF output power: |
10 mW ERP (Average)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / Internal only |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2013-20xx (Discontinued) |
| Additional info: | |
| Related documents: | User manual (1.2 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
