MFJ-8704 "Video Lynx"

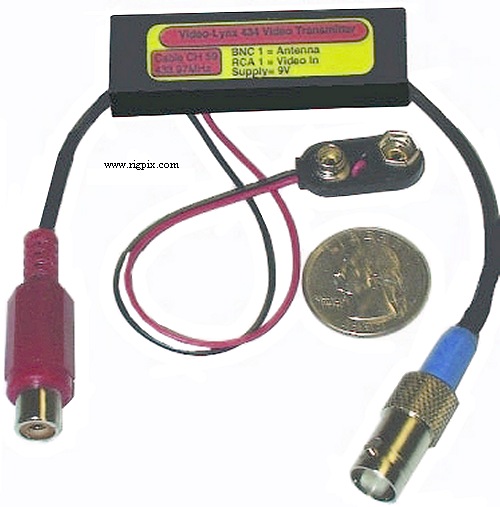

A picture of MFJ-8704 ''Video Lynx''

SPECIFICATIONS

GENERAL
Type:Amateur UHF ATV transmitter
Frequency range: 433.97 MHz
Tuning steps:Single channel
Frequency stability:±? ppm
Video mode:AM (PAL / NTSC)
Audio mode:No audio subcarrier
Power supply:9 VDC
Current drain / power consumption:Max 40 mA
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):? mm (?")
Weight:? g (? oz)
Other features:




TRANSMITTER SECTION
RF output power:50 mW (100 mW unmodulated)
Modulation system:
Max FM deviation (Factory set): No FM
Spurious emissions:Better than -40 dB
Input impedance / connector: Video: ? / Phono (RCA)




MISCELLANEOUS
Manufactured:USA, 20xx-20xx (Discontinued)
Additional info: SAW stabilized with MMIC amplifier

New price 2010 in the US: $119.95
Related documents:User manual (168 KB)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
