| GENERAL |
| Type: | SHF video receiver |
| Frequency range: |
5.7 GHz - 40 channels
| Band | Ch 1 | Ch 2 | Ch 3 | Ch 4 | Ch 5 | Ch 6 | Ch 7 | Ch 8 |
| A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| C | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| D | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| E | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
|
| Tuning steps: | Channelized |
| Frequency stability: | ±? ppm |
| Video mode: | FM, ~18 MHz bandwidth |
| Audio mode: | FM, mono subcarrier |
| Power supply: | 7.4 VDC (built-in LiPo battery)
or 7-16 VDC external (12 VDC nominal) |
| Current drain / power consumption: | Max 650 mA @ 12 VDC |
| Antenna impedance / connector: | 50-75 ohm / Two RP-SMA |
| Dimensions (W*H*D): | 176*119*23 mm (6.93*4.68*0.9"), excluding the sunshield |
| Weight: | 425 g (15 oz) |
| Other features: |

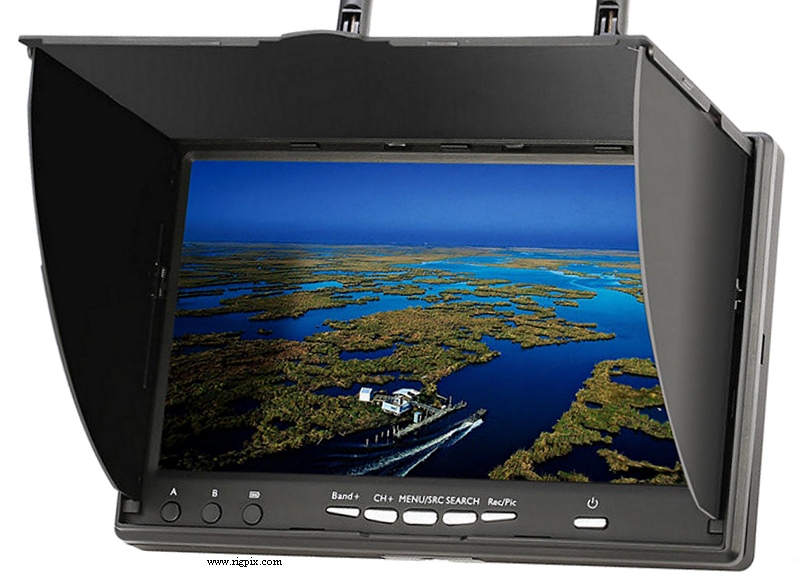

7" TFT (800*480 pixels) with LED backlight and OSD.

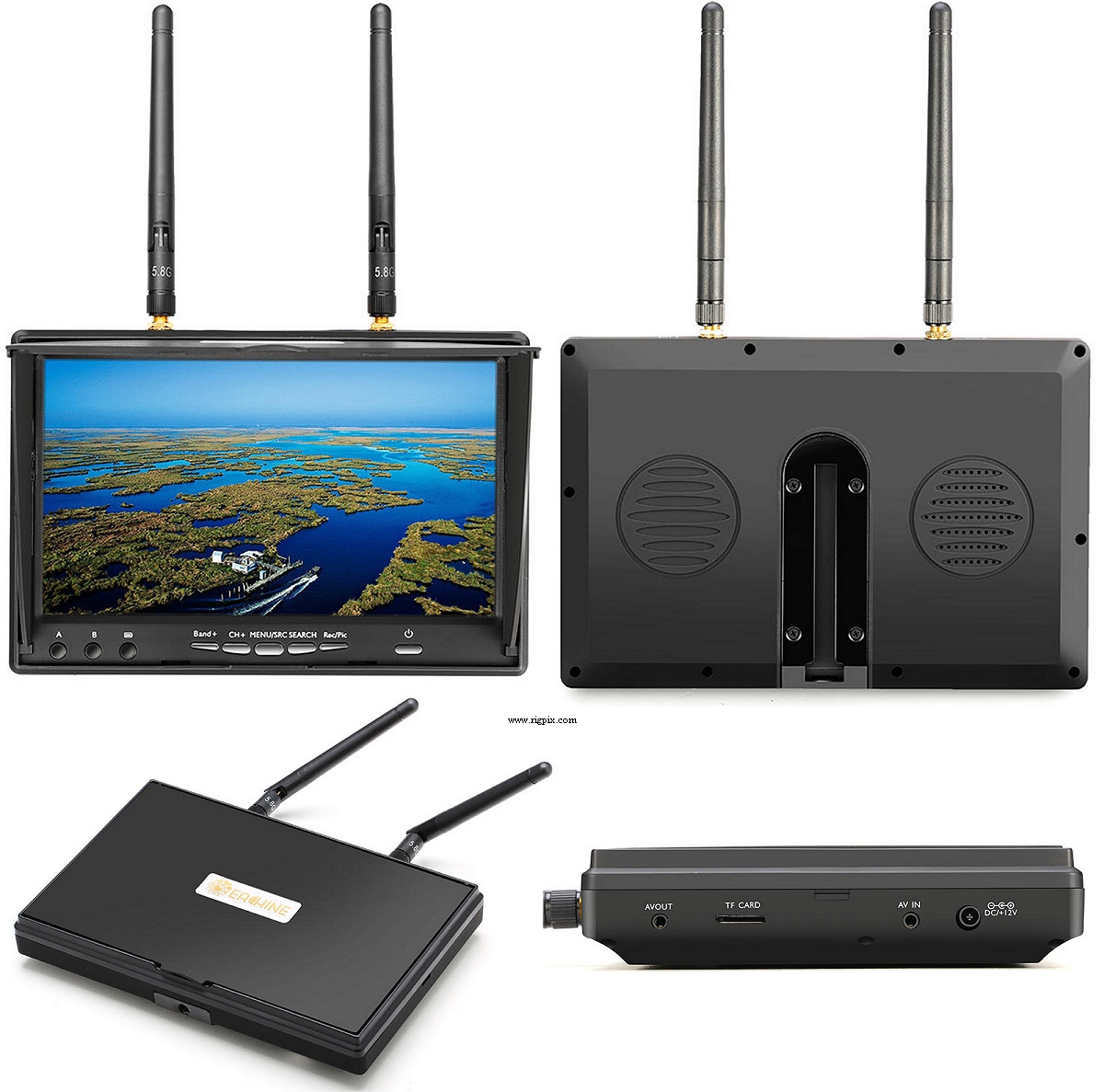

Diversity reception. One A/V output. One A/V input. Scanning.
Built-in DVR with recording on up to 32 GB TF memory card.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: ? MHz
|
| Sensitivity: |
-? dBm (Treshold for noise free video)
-? dBm (Treshold for loss of color)
-? dBm (Treshold for loss of sync)
NB! The treshold for loss of color and sync is
approximate and can differ between monitors
|
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| Output impedance / connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 201x-20xx |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
