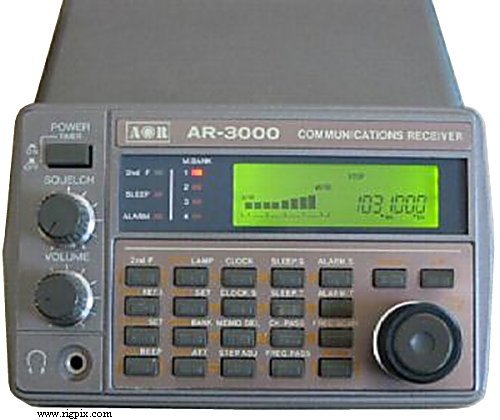

| GENERAL |
| Type: | HF/VHF/UHF receiver/scanner |
| Frequency range: |
0.1-2036 MHz
|
| Tuning steps: | Any 50 Hz increment between 50 Hz to 100 KHz |
| Frequency stability: | ? ppm |
| Mode: | AM / FM / WFM / SSB / CW |
| Channels / memory management: |
400 regular in 4 banks @ 20 ch/second
4 priority
4 search ranges
RAM storage with lithium battery backup (CR-2032, solder type)
|
| Power supply: | 12-14 VDC (3-pin connector) |
| Current drain / power consumption: | Max 500 mA |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 138*80*200 mm (5.43*3.15*7.87") |
| Weight: | 1.2 Kg (2.65 lb) |
| Other features: | RS-232C. Clock/Timer. Attenuator. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne (AM/FM/SSB/CW)
1st IF: 736.23, 352.23 or 198.63 MHz, depending on RX frequency
2nd IF: 45.03 MHz
3rd IF: 455 KHz
Quadruple conversion superheterodyne (WFM)
1st IF: 735.23, 352.23 or 198.63 MHz, depending on RX frequency
2nd IF: 45.03 MHz
3rd IF: 10.7 MHz
4th IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: |
AM/FM:
12 KHz (-6 dB)
25 KHz (-70 dB)
WFM:
180 KHz (-6 dB)
800 KHz (-50 dB)
SSB/CW:
2.4 KHz (-6 dB)
4.5 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 1.2 W at 10% distortion / 4 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 4-8 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1989-1991 (Discontinued) |
| Additional info: |
FCC ID: CG7913-3000
New price 1989 in Sweden: SEK 9700:-.
|
| Related documents: | User manual (235 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
ACEPAC-3
Searchlight
|
Computer control software (MS-DOS)
Computer control software (Windows 3.1/3.11/95)
|
|
