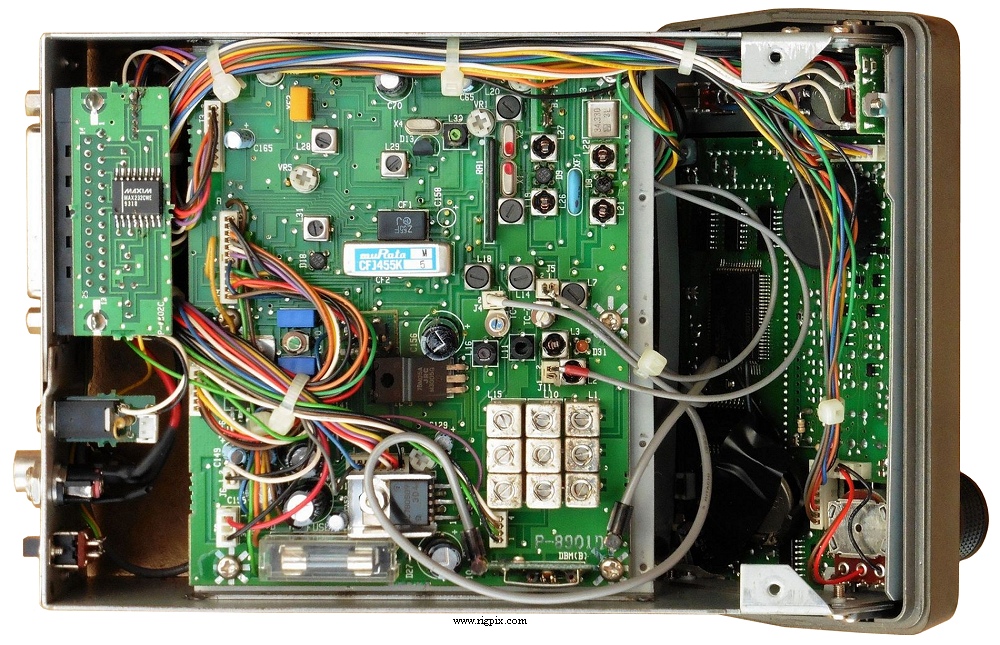

| GENERAL |
| Type: | HF/VHF/UHF receiver/scanner |
| Frequency range: |
0.1-2036 MHz
|
| Tuning steps: | Any multiple of 50 Hz up to 999.95 KHz |
| Frequency stability: | ±5 ppm @ -10 to +50°C (14 to 122°F) |
| Mode: | AM / FM / WFM / SSB / CW |
| Channels / memory management: |
400 regular in 4 banks
4 search banks
100 lockout per search bank
4 priority
RAM storage with lithium battery backup (CR-2032, solder type)
|
| Power supply: | 12-14 VDC |
| Current drain / power consumption: | Max 300 mA |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 138*80*200 mm (5.43*3.15*7.87") |
| Weight: | 1.2 Kg (2.65 lb) |
| Other features: | RS-232C port (DB25f) for computer control. Clock and timer. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne (AM/FM/SSB/CW)
1st IF: 736.23, 352.23 or 198.63 MHz, depending on RX frequency
2nd IF: 45.03 MHz
3rd IF: 455 KHz
Quadruple conversion superheterodyne (WFM)
1st IF: 735.23, 352.23 or 198.63 MHz, depending on RX frequency
2nd IF: 45.03 MHz
3rd IF: 10.7 MHz
4th IF: 455 KHz
|
| Sensitivity: |
AM (No S/N reference)
0.1-2.5 MHz: 3.2 uV
2.5-1800 MHz: 1 uV
1800-2000 MHz: 3 uV
FM (12 dB SINAD)
2.5-1800 MHz: 0.35 uV
1800-2000 MHz: 1.25 uV
WFM (No SINAD reference)
2.5-1800 MHz: 1 uV
1800-2000 MHz: 3 uV
SSB (10 dB S/N)
0.1-2.5 MHz: 1 uV uV
2.5-1800 MHz: 0.25 uV
1800-2000 MHz: 0.75 uV
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: |
AM/FM:
12 KHz (-6 dB)
15 KHz (-70 dB)
WFM:
180 KHz (-6 dB)
800 KHz (-50 dB)
SSB/CW:
2.4 KHz (-6 dB)
4.5 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 1.2 W at 10% distortion / 4 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 4-8 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1991-199x (Discontinued) |
| Additional info: |
FCC ID: CG7913-3000A
|
| Related documents: |
User manual (2 MB)
Service manual (35 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
ACEPAC-3A
CR-400
DA-1000
DA-3000
LA-3000
LA-320
MA-500
MM-1
Searchlight
WA-5000
WX-2000
|
Computer control software (MS-DOS)
Tape recording lead
Parabolic antenna
Discone antenna, 25-2000 MHz
Low noise amplifier
LW/SW active desktop loop antenna
Mobile magmount antenna. 25-1500 MHz
Quick-release mobile mounting bracket
Computer control software (Windows 3.1/3.11/95)
Active compact wideband antenna, 0.03-2000 MHz
Fax decoder with built-in printer
|
|
