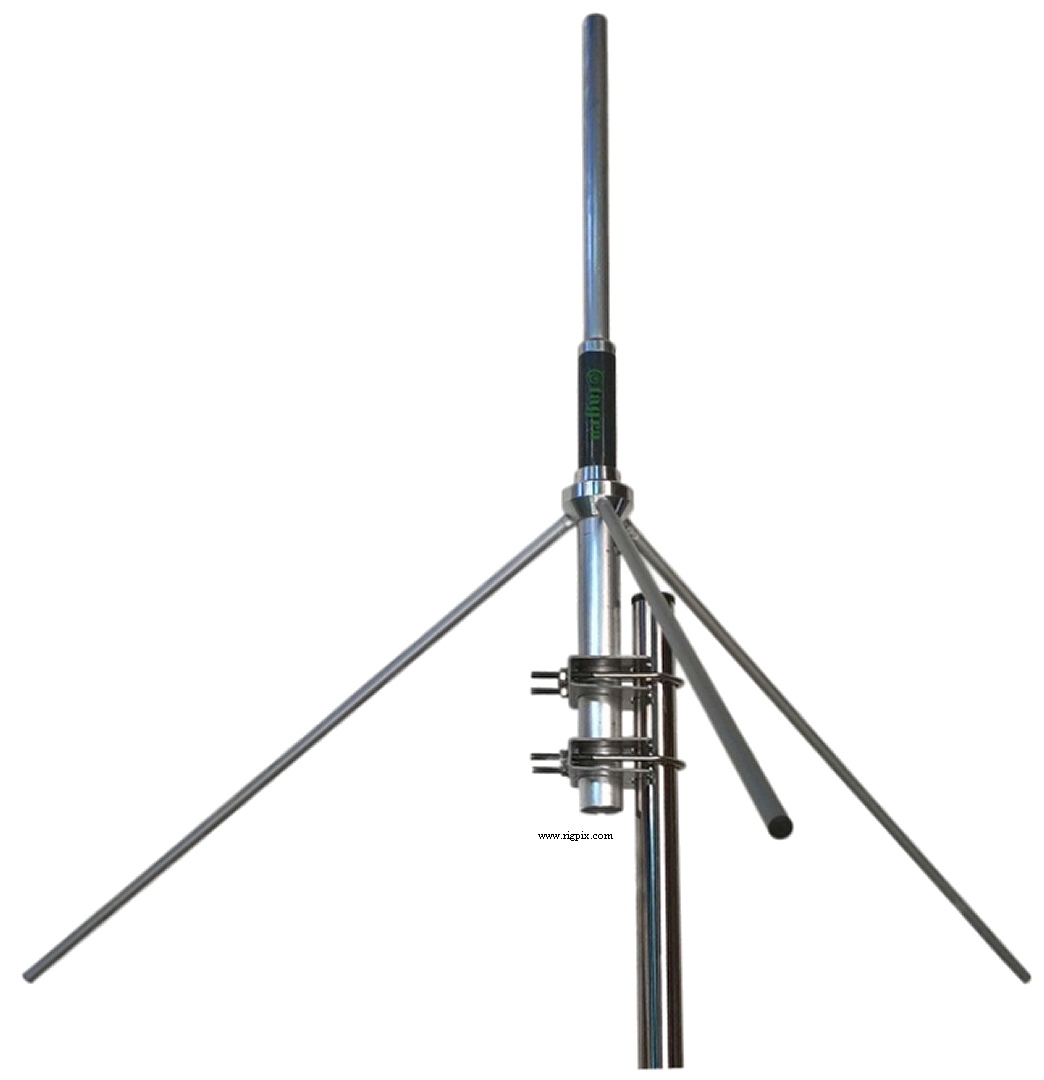

Tagra GP-80
SPECIFICATIONS
| Type: | VHF vertical base antenna |
| Frequency range / band(s): | 65-136 MHz - 1/4-wave |
| Bandwidth @ SWR: | |
| Gain: | 0 dBd |
| Beamwidth (-3 dB): | Omni |
| G/T @ 30° elevation: | - |
| Max power: | 200 W |
| Impedance / connector: | 50 ohm / SO-239 (M-jack) |
| Wind area: | ? m² (? ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | - |
| Dimensions: | Height: 1.06 m (3.48 ft) |
| Weight: | 1.86 Kg (4.1 lb) |
| Mast mount diameter: | 30-45 mm (1.18-1.77") |
| Manufactured: | Spain, 19xx-20xx |
| Additional info: |
New price 1992 in Sweden: SEK 600:-.
Retail price from the manufacturer, may 2024: 98.40 Euro + VAT
|
| Related documents: | |
| Reviews: | |
| Options / Accessories: |
|
|
