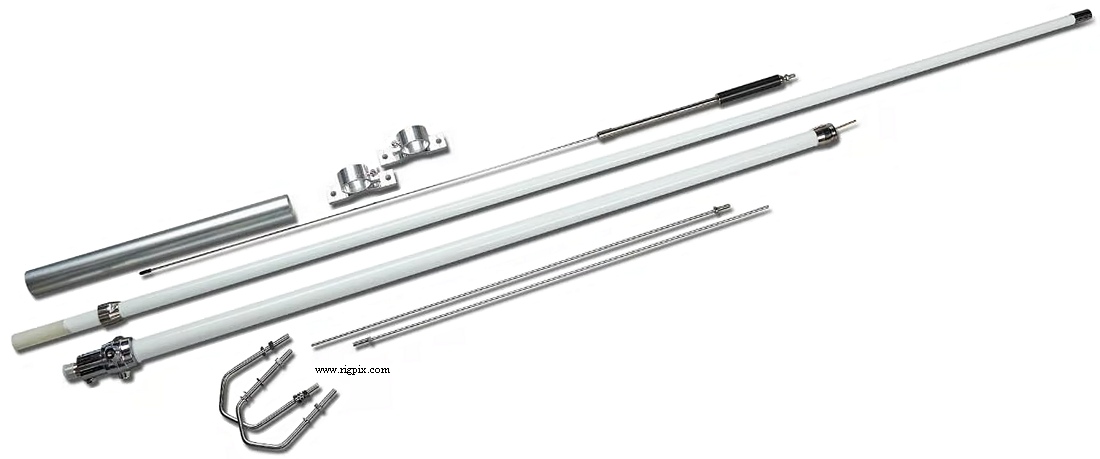

| Type: | Amateur triband VHF/UHF vertical base antenna |
| Frequency range / band(s): |
50-52 MHz / 6 m
144-146 MHz / 2 m
430-440 MHz / 70 cm
Also wideband RX @ 25-2000 MHz
|
| Bandwidth @ SWR: | Full bands @ 1.5:1 or better |
| Gain: |
6 m - 3 dBi
2 m - 6.2 dBi
70 cm - 8.4 dBi
|
| Beamwidth (-3 dB): | Omni |
| G/T @ 30° elevation: | - |
| Max power: | 100 W |
| Impedance / connector: | 50 ohm / SO-239 |
| Wind area: | ? m² (? ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | - |
| Dimensions: | Height: 2.5 m (8.2 ft) |
| Weight: | ? Kg (? lb) |
| Mast mount diameter: | ?-? mm (?-?") |
| Manufactured: | 201x-20xx |
| Additional info: |
New price, may 2025 in the UK: £79.99
|
| Related documents: | |
| Reviews: | |
| Options / Accessories: |
|
