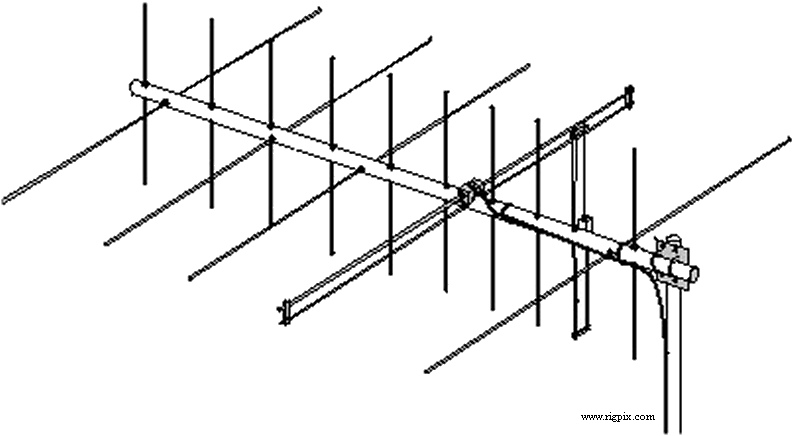

M2 2M5-440XP
SPECIFICATIONS
| Type: | Amateur VHF/UHF crossed yagi, 5+10 elements |
| Frequency range / band(s): | 144-148 / 430-450 MHz (2 m / 70 cm) |
| Bandwidth: | |
| Gain: | 2 m: 9 dBd, f/b 15 dB
70 cm: 12 dBd, f/b 25 dB |
| Beamwidth (-3 dB): | E-plane: ?°
H-plane: ?° |
| G/T @ 30° elevation: | - |
| Max power: | 2 m: 1.5 KW
70 cm: 750 W |
| Impedance / connector: | 50 ohm / Two N-jacks |
| Wind area: | ? m² (? ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | ? m (? ft) |
| Dimensions: | Boom length: 1.51 m (4.95 ft)
Longest element: ? m (? ft) |
| Weight: | ? Kg (? lb) |
| Mast mount diameter: | ?-? mm (?-?") |
| Manufactured: | 19xx-20xx |
| Additional info: | |
| Related documents: | |
| Reviews: | |
| Options / Accessories: |
|
|
