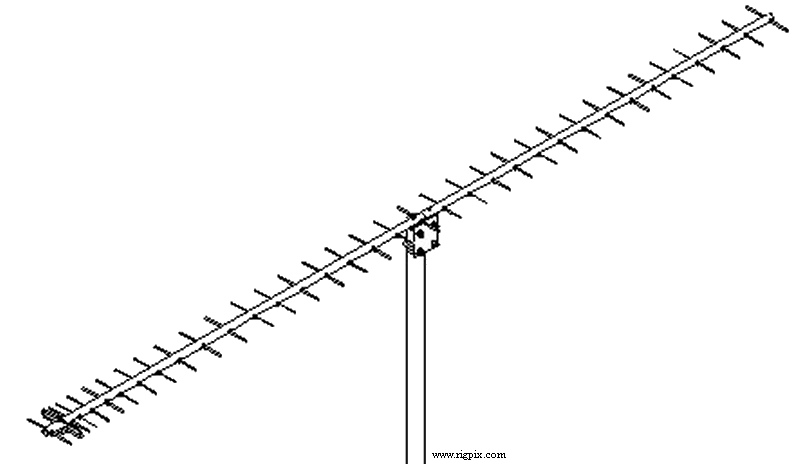

M2 23CM35EZ
SPECIFICATIONS
| Type: | Amateur UHF yagi, 35 elements |
| Frequency range / band(s): | 1250-1300 MHz (23 cm) |
| Bandwidth: | |
| Gain: | 18.4 dBd, f/b 25 dB |
| Beamwidth (-3 dB): | E-plane: ?°
H-plane: ?° |
| G/T @ 30° elevation: | ? dB |
| Max power: | 600 W |
| Impedance / connector: | 50 ohm / N-jack |
| Wind area: | ? m² (? ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | ? m (? ft) |
| Dimensions: | Boom length: 3.05 m (10 ft) = 13.12 wl
Longest element: ? m (? ft) |
| Weight: | ? Kg (? lb) |
| Mast mount diameter: | ?-? mm (?-?") |
| Manufactured: | 19xx-20xx |
| Additional info: | |
| Related documents: | |
| Reviews: | |
| Options / Accessories: |
|
|
