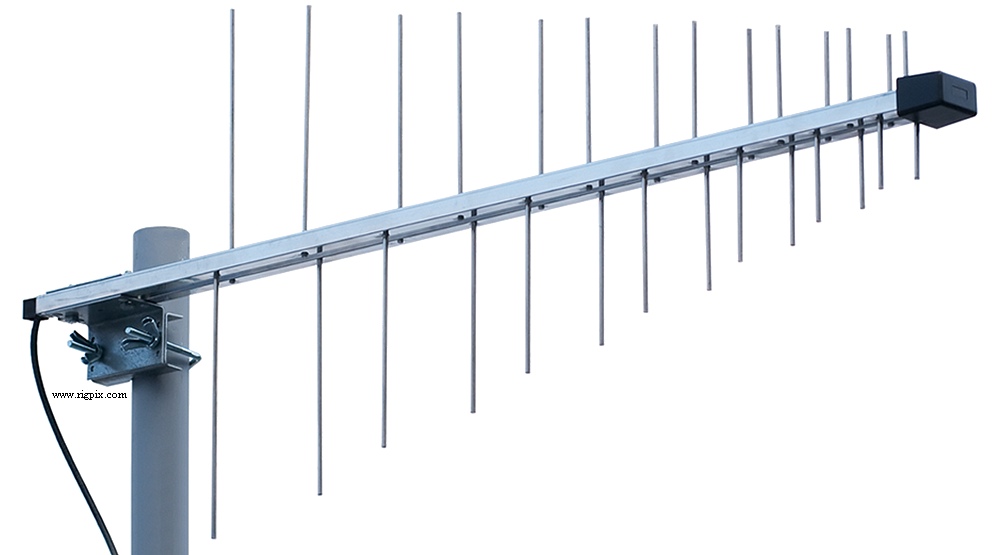

Iskra P-28 TETRA 400/GSM
SPECIFICATIONS
| Type: | Wideband logperiodic UHF antenna, 28 elements |
| Frequency range / band(s): | 380-960 MHz |
| Bandwidth @ SWR: | 580 MHz @ SWR less than 1.5:1 |
| Gain: | 8-10 dBi, f/b 22 dB |
| Beamwidth (-3 dB): | E-plane: 62°
H-plane: 80° |
| G/T @ 30° elevation: | - |
| Max power: | ? W |
| Impedance / connector: | 50 ohm / FME |
| Wind area: | ? m² (? ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | ? m (? ft) |
| Dimensions: | Boom length: 82 cm (32.3")
Longest element: ? cm (?") |
| Weight: | ? g (? lb) |
| Mast mount diameter: | 20-50 mm (0.79-1.97") |
| Manufactured: | Slovenia, 20xx-20xx |
| Additional info: | |
| Related documents: | |
| Reviews: | |
| Options / Accessories: |
|
|
