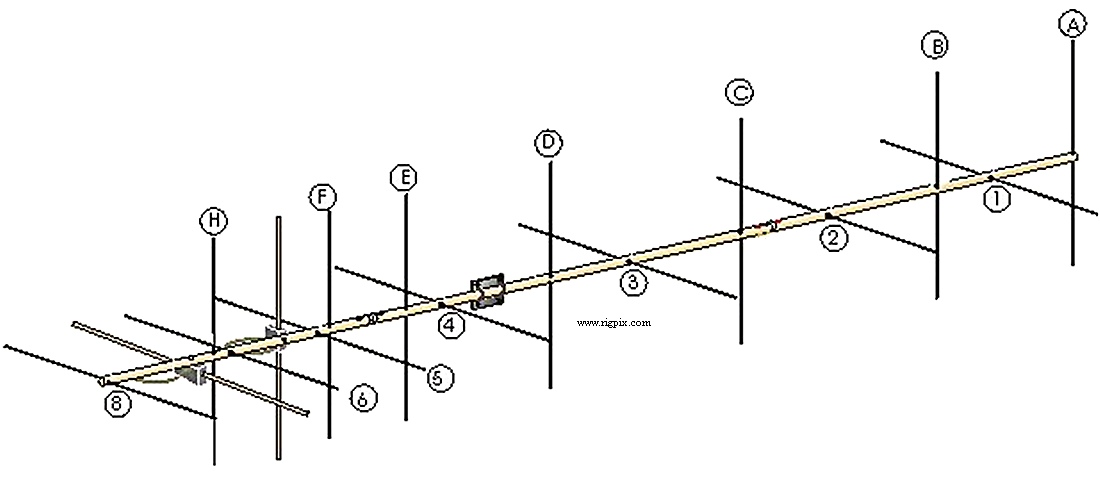

I0JXX 8x8JXX2
SPECIFICATIONS
| Type: | Amateur VHF crossed yagi, 2*8 elements |
| Frequency range / band(s): | 2 m |
| Bandwidth: | |
| Gain: | 12.19 dBd, f/b ? dB |
| Beamwidth (-3 dB): | E-plane: 34.8°
H-plane: 38.2° |
| G/T @ 30° elevation: | |
| Max power: | 1 KW |
| Impedance / connector: | 50 ohm / N-jack |
| Wind area: | 0.2 m² (2.15 ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | ? m (? ft) |
| Dimensions: | Boom length: 4.75 m (15.58 ft) = 2.04 wl
Longest element: ? m (? ft) |
| Weight: | 3.8 Kg (8.38 lb) |
| Mast mount diameter: | 30-50 mm (1.18-2") |
| Manufactured: | Italy, 20xx-202x |
| Additional info: |
New price 2022 in Italy: 230.00 Euro.
|
| Related documents: | User manual (1.7 MB) |
| Reviews: | |
| Options / Accessories: |
|
|
