Hy-Gain TH-2MK3

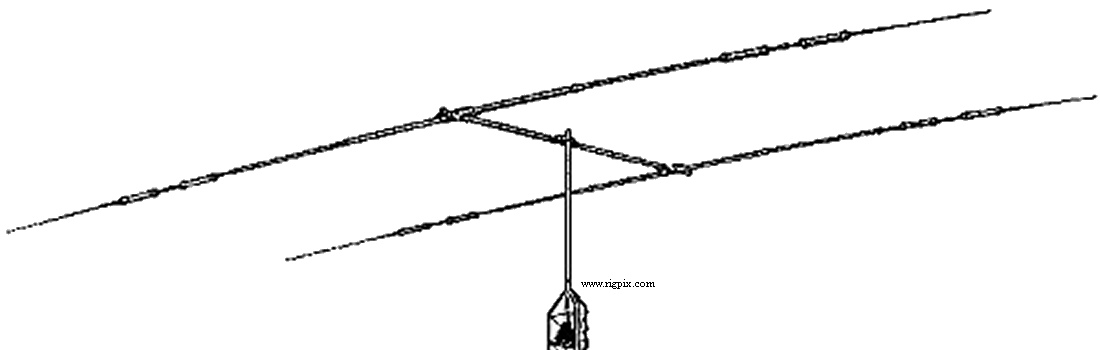

A picture of Hy-Gain TH-2MK3

SPECIFICATIONS

Type:Amateur HF yagi, 2 elements
Frequency range / band(s):10 / 15 / 20 m
Bandwidth:
Gain:3.4 dBd, f/b 15-20 dB
Beamwidth (-3 dB):E-plane: ?°
H-plane: ?°
G/T @ 30° elevation:-
Max power:1.5 KW
Impedance / connector:50 ohm / ?
Wind area:? m² (? ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:? m (? ft)
Dimensions:Boom length: 2 m (6.56 ft)
Longest element: 9 m (29.53 ft)
Weight:9 Kg (19.84 lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:19xx-20xx
Additional info: New price 2002 in the US: $369.95.
Related documents:
Reviews:
Options / Accessories:
- -
