Ham International Big Mac

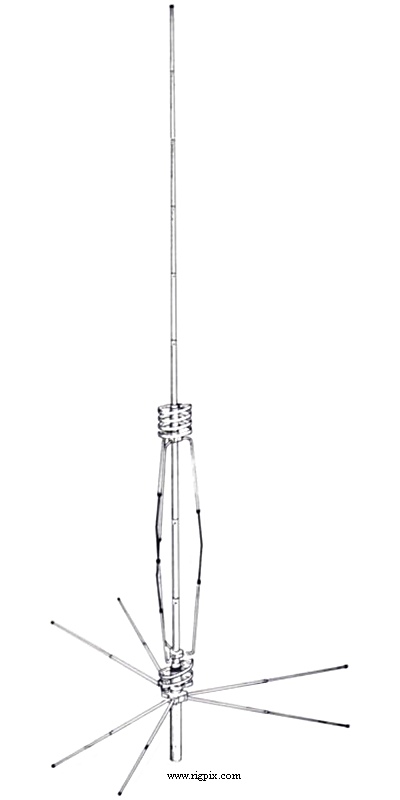

A picture of Ham International Big Mac

SPECIFICATIONS

Type:HF vertical base antenna
Band(s):26-28 MHz (11 m)
Bandwidth:800 KHz for SWR <1.6
Gain:7 dBi (4.86 dBd) - 7/8-wave
Beamwidth (-3 dB):Omni
G/T @ 30 elevation:-
Max power:2 KW
Impedance / connector:50 ohm / SO-239
Wind area:
Max wind resistance:
Turning radius:-
Dimensions:Total heigth: 9.945 m (32.63 ft)
Radial length: 2.67 m (8.76 ft)
Weight:5.1 Kg (11.24 lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:Belgium, 19xx-19xx (Discontinued)
Additional info:
Related documents:Flyer (541 KB)
Reviews:
Options / Accessories:
- -
