Diamond D-777

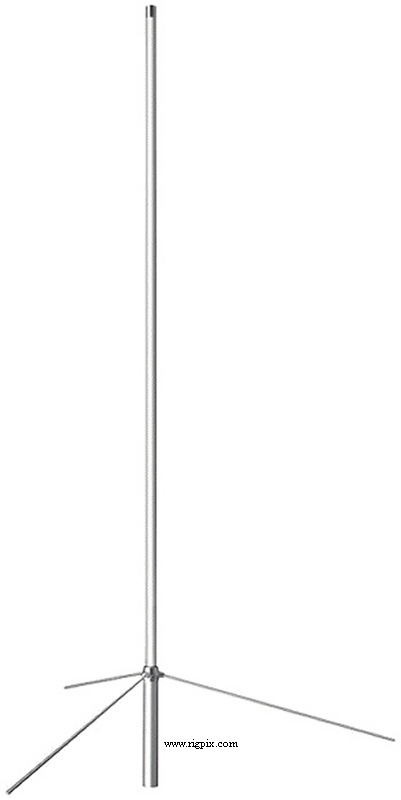

A picture of Diamond D-777

SPECIFICATIONS

Type:Airband vertical base antenna
Frequency range / band(s):108-138 MHz - 5/8-wave
225-400 MHz - 2*5/8-wave
Bandwidth:
Gain:120 MHz: 3.4 dBi
300 MHz: 5.5 dBi
Beamwidth (-3 dB):Omni
G/T @ 30° elevation:-
Max power:RX only!
Impedance / connector:50 ohm / SO-239 (M-jack)
Wind area:? m² (? ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:-
Dimensions:Height: 1.7 m (5.58 ft)
Weight:1 Kg (2.2 lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:Japan, 200x-20xx
Additional info: New price 2016 in Sweden: SEK 895:-
Related documents:User manual (344 KB)
Reviews:
Options / Accessories:
- -
