Barker & Williamson AC 1.8-30

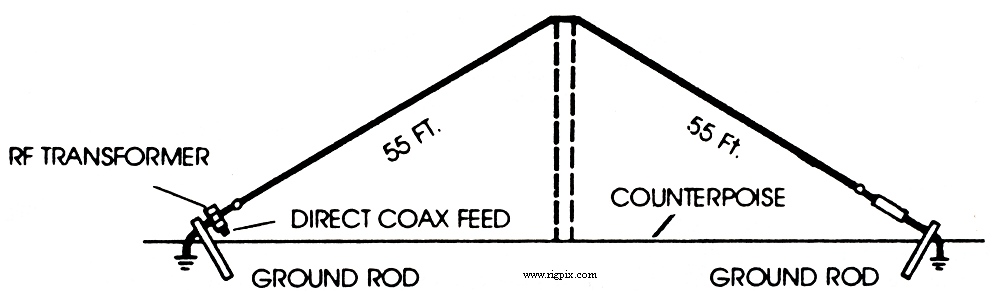

A picture of Barker & Williamson AC 1.8-30

SPECIFICATIONS

Type:Amateur HF antenna
Frequency range / band(s):1.8-30 MHz
Bandwidth:
Gain:- dB
Beamwidth (-3 dB):
G/T @ 30° elevation:-
Max power:2 KW
Impedance / connector:50 ohm / SO-239
Wind area:? m² (? ft²)
Max wind resistance:? m/sec (? mph)
Turning radius:-
Dimensions:Length: 33 m (108.3 ft)
Weight:? Kg (? lb)
Mast mount diameter:
Manufactured:USA, 19xx-19xx
Additional info: New price 1993 in Sweden: SEK 2100:-
Related documents:
Reviews:
Options / Accessories:
- -
