| GENERAL |

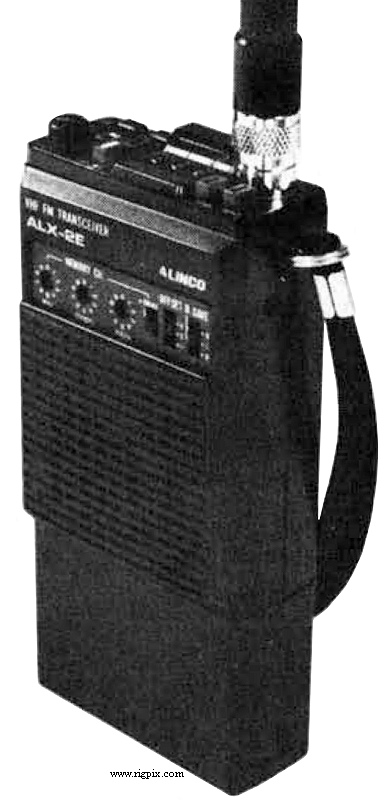

| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe
TX: 144-146 (140-150) MHz
RX: 140-150 MHz
|
| Tuning steps: | 10 / 100 KHz, 1 MHz (Thumbwheels) + a 5 KHz pushbutton |
| Frequency stability: | ±? ppm |
| Mode: | FM |
| Channels / memory management: |
1 regular
Priority function
Stored by three rotary switches and one slide switch
|
| Repeater shift / offset: | ±600 KHz |
| Power supply: | 7-9.6 VDC (Depending on battery pack) |
| Current drain / power consumption: | RX: 25 mA (Squelched, saver on)
TX: Max 750 mA @ 2 W |
| Antenna impedance / connector: | 50 ohm / Threaded phono (RCA) |
| Dimensions (W*H*D): | 58*141*23 mm (2.28*5.55*0.9") |
| Weight: | 240 g (8.47 oz), with EBP-2N and antenna |
| Other features: | 1750 Hz tone call. Illuminated thumbwheels. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 16.9 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 200 mW at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
NB! The high output level depends on voltage/battery pack
|
| Modulation system: | Reactance modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1987-1988 (Discontinued) |
| Additional info: | New price, december 1987 in the UK: £199.00 |
| Related documents: |
User manual (665 KB)
RF power module: Mitsubishi M57796MA
|
| Modifications and fixes: | |
| Reviews: | Practical Wireless: April 1988, page 24 |
| Options / Accessories: |
EBP-2N
EBP-3N
EBP-6N
EDC-4
EDC-6
EDC-7
|
NiCd battery pack. 7.2 V, 160 mAh
NiCd battery pack. 7.2 V, 450 mAh
NiCd battery pack. 9.6 V, 450 mA
AC adapter (USA)
AC adapter (Europe)
Battery charger
|
|
