| GENERAL |

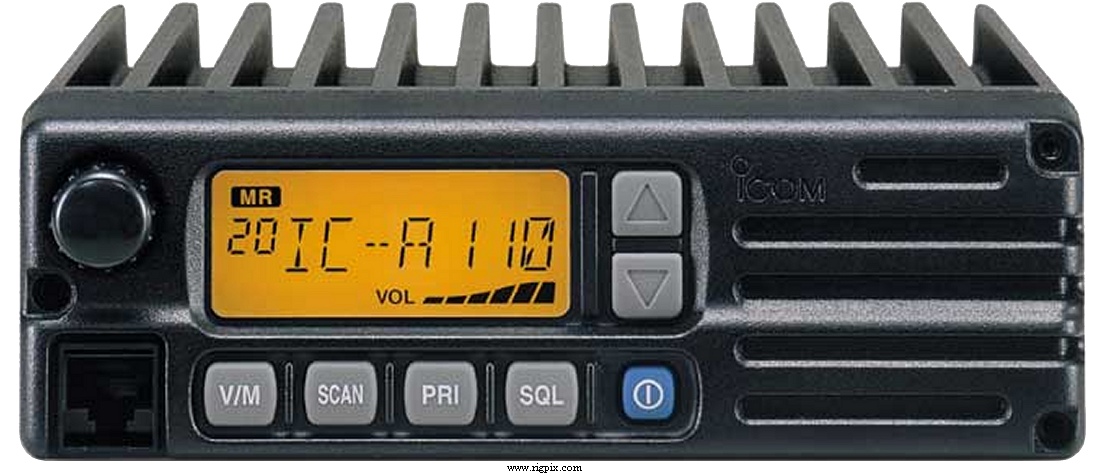

| Type: | Airband transceiver |
| Frequency range: |
TX: 118-137 MHz
RX: 118-137 MHz
|
| Tuning steps: | 8.33 / 25 KHz |
| Frequency stability: | ±5 ppm @ -30 to +60°C (-22 to +140°F) |
| Mode: | AM |
| Channels / memory management: |
20 regular with alpha tags (Early)
99 regular with alpha tags (Later)
Priority function
|
| Power supply: | 13.8 or 24 VDC |
| Current drain / power consumption: | RX: 0.5-4 A @ 13.8 VDC
TX: Max 5 A @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 150*50*180 mm (5.91*1.97*7.09") |
| Weight: | 1.5 Kg (3.31 lb) |
| Other features: | Scanning. Dual watch. Sidetone function. Cloning. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 38.85 MHz
2nd IF: 450 KHz
|
| Sensitivity: | 1 uV (-6 dB) |
| Squelch sensitivity: | 0.35 uV (Threshold) |
| Noise figure: | |
| Selectivity: |
8.33 KHz channel spacing
5.6 KHz (-6 dB)
14.6 KHz (-60 dB)
25 KHz channel spacing
16 KHz (-6 dB)
50 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 10 W at 10% distortion / 8 ohm |
| External speaker connector: |
Speaker: 8 ohm
Sidetone: 500 ohm
|
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
9 W carrier (36 W PEP)
|
| Modulation system: | Last stage modulation |
| Spurious emissions: | Better than -16 dBm |
| Microphone impedance / connector: | ? ohm / ?-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1999-20xx (Discontinued) |
| Additional info: | |
| Related documents: |
User manual v1999 (595 KB)
User manual v2011 (1.5 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CS-A110
HM-161
OPC-478
OPC-591
OPC-592
OPC-871
|
Cloning software
Standard hand microphone
Cloning cable
Cloning cable (Radio-radio)
Cloning cable adapter
Headset adapter
|
|
